Send InquiryAmpoule Filling Machine
Product Details:
- Material SS 304
- Computerized No
- Automatic Grade Semi-Automatic
- Control System Human Machine Interface
- Drive Type Electric
- Power 220 Volt (v)
- Voltage 380 Volt (v)
Ampoule Filling Machine Price And Quantity
- 1 Unit
- 1.500000 INR
Ampoule Filling Machine Product Specifications
- Semi-Automatic
- 100-200 Kilograms (kg)
- SS 304
- Electric
- Human Machine Interface
- No
- Silver
- 1000x600x950 Millimeter (mm)
- 220 Volt (v)
- 380 Volt (v)
- 1 Year
Ampoule Filling Machine Trade Information
- Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe North America Eastern Europe Central America Africa Middle East South America Australia Asia
- All India
Product Description

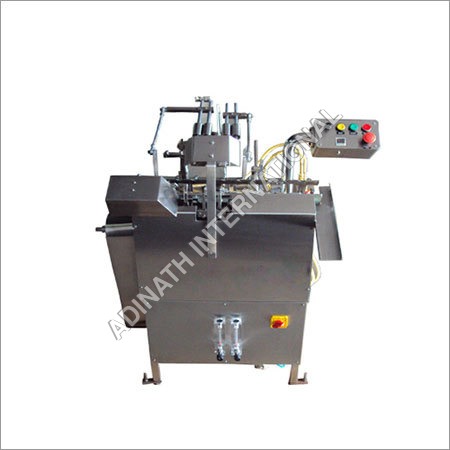

Ampoule Filling Machine built on principle of slant travel of ampoules while filling and sealing, to take care of video variation of ampoule neck dimensions, thicknesses of available standard ampoules.The Filling unit built on S. S. Square pipe frame and totally encompassed with S. S. Coverings, in pleasing mat finish, Further, the large opening available at the bottom side for ease of absolute cleaning.The pendant type electrical control panel is lifted from machine for ease of operation and safety.
Salient Features :-
- Compact GMP model.
- All contact parts made from high quality Stainless Steel 316 & other Non-contact parts made from Stainless Steel 304.
- Minimum change over parts from 1ml to 20ml ampoule size.
- No Ampoule - No Filling system.
- Ampoule neck centering during gas flushing and filling operations.
- Possibility of nitrogen gas flushing before, during and after filling.
- Full accessibility allows easy maintenance.
- Machine equipped with pre-warming station.
- Minimum change over time, little maintenance & easy cleaning.
- The sterilized ampoule tray directly loaded in to slant hopper of the unit. The Synchronized star wheel delivers ampoules, one by one on moving eccentric ampoule rack in single.
- During the stoppage of rack sequentially pre-gassing, filling, post gassing, pre heating and final sealing is achieved.
Technical Specification :-
| Model | AFS-30 |
| No. of Head | Single |
| Ampoule Handling Range | 1 ml to 20 ml |
| Production Output | 15 to 30 ampoules/minute |
| Filling Accuracy | 1% |
| Require Gas for Sealing | LPG & Oxygen (O) |
| Nitrogen Flushing | Pre & Post Nitrogen Flushing Available |
| Power Specification | 0.5 H.P. |
| Electrical Characteristics | 230 Volts, Single Phase, 50 Hertz, 4 Wire System |
| Contact Parts | Made from Stainless Steel 316L |
| Non Contact Parts | Made from Stainless Steel 304 |
| Overall Dimension | 915mm (L) x 610mm (W) x 965mm (H) |
