Send Inquiry20ml Ampoule Filling Machine
Product Details:
- Material SS 304
- Feature Chemical Food
- Computerized No
- Automatic Grade Semi-Automatic
- Control System Human Machine Interface
- Drive Type Electric
- Power 220 Volt (v)
20ml Ampoule Filling Machine Price And Quantity
- 1 Unit
- 1.500000 INR
20ml Ampoule Filling Machine Product Specifications
- 1000x600x950 Millimeter (mm)
- 1 Year
- 380 Volt (v)
- 100-200 Kilograms (kg)
- Human Machine Interface
- Semi-Automatic
- Electric
- Chemical Food
- No
- Silver
- 220 Volt (v)
- SS 304
20ml Ampoule Filling Machine Trade Information
- Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe Australia North America Eastern Europe Middle East Central America Africa South America Asia
- All India
Product Description

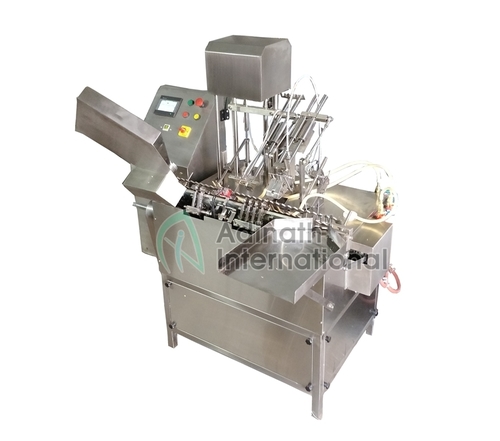

20ml Ampoule Filling MachineAutomatic 20ml Ampoule Filling Sealing Machine built on principle of slant travel of ampoules while filling and sealing, to take
care of wide variation of ampoule neck dimensions, thicknesses of available standard ampoules.
The Filling unit built on S. S. Square pipe frame and totally encompassed with S. S. Coverings, in pleasing mat finish, Further, the large opening available at the bottom side for ease of absolute cleaning.
The pendant type electrical control panel is lifted from machine for ease of operation and safety.
Salient Features :
Compact GMP model.
All contact parts made from high quality Stainless Steel 316L & other Non-contact parts made from Stainless Steel 304.
Minimum change over parts from 1ml to 10ml ampoule size.
No Ampoule No Filling system.
Ampoule neck centering during gas flushing and filling operations.
Possibility of nitrogen gas flushing before, during and after filling.
Full accessibility allows easy maintenance.
Machine equipped with pre-warming station.
Minimum change over time, little maintenance & easy cleaning.
Technical Specification :
| Model: | AFS-55 |
| Production Output | 30 to 55 Ampoules/Minute |
| No. of Filling & Sealing Heads | Two |
| Filling Range | 1ml to 20ml |
| Input Specification | - |
| Ampoule Diameter | 9mm to 17mm |
| Ampoule Height | 50mm to 95mm |
| Filling Accuracy | ± 0.5% - 1% |
| Power Supply | 1 H.P. |
| Electrical Characteristics | 220 Volts, Single Phase, 50 Hertz |
| Utility | - |
| Nitrogen Pressure | 1kg/Cm² |
| Oxygen Pressure | 1kg/Cm² |
| LPG Pressure | 0.5 kg/Cm² |
| Overall Dimension | 915mm (L) x 760mm (W) x 965mm (H) |
