Send Inquiry10ml Ampoule Filling Machine
Product Details:
- Material SS 304
- Feature Chemical, Medical
- Computerized No
- Automatic Grade Semi-Automatic
- Control System Human Machine Interface
- Drive Type Electric
- Power 220 Volt (v)
10ml Ampoule Filling Machine Price And Quantity
- 1 Unit
- 1.500000 INR
10ml Ampoule Filling Machine Product Specifications
- Human Machine Interface
- 220 Volt (v)
- 100-200 Kilograms (kg)
- 1200 X 900 X 1070 Millimeter (mm)
- Silver
- Chemical, Medical
- Electric
- No
- Semi-Automatic
- SS 304
- 1 Year
- 380
10ml Ampoule Filling Machine Trade Information
- Letter of Credit (L/C), Cash Advance (CA), Telegraphic Transfer (T/T), Cash in Advance (CID)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Australia, South America, Eastern Europe, Western Europe, Middle East, Central America, Africa, Asia, North America
- All India
Product Description

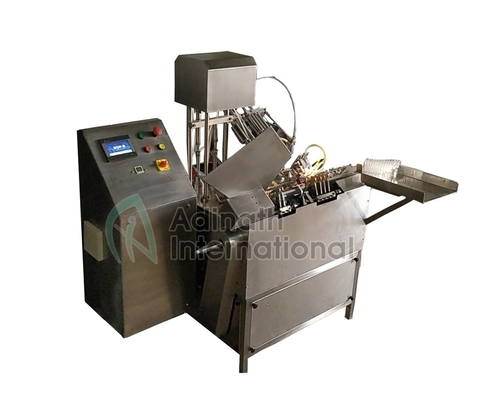

10ml Ampoule Filling MachineAutomatic Ampoule Filling Sealing Machine is suitable to fill 1ml to 20ml ampoules. Machine designed for performance and GMP demanding customers. The machine built on principal of slant travel of ampoules while filling and sealing to take care of vide variation of neck dimensions, thickness and ovality of available ampoules. The unit built on S.S. Square pipe frame and totally encompassed with S.S. Coverings in pleasing mat finish. Further large opening available at bottom side for ease of absolute cleaning.
Salient Features :
Compact cGMP model.
Higher output up to 6000 Ampoules per hour.
All contact parts made from High Quality Stainless Steel 316L & Non-contact parts made from Stainless Steel 304.
Minimum change over parts from 1ml to 10ml ampoule size.
"No Ampoule - No Filling" system.
Ampoule neck centering during gas flushing and filling operations.
Possibility of nitrogen gas flushing before, during and after filling.
Full accessibility allows easy maintenance.
Machine equipped with pre-warming station.
Flow Meters for regulating flames easily.
Minimum change over time, little maintenance, easy cleaning
Technical Specification :
| Model | AFS-55 | AFS-100 |
| Production Output | 30 to 55 Ampoules/Minute | 60 to 100 Ampoules/Minute |
| No. of Filling & Sealing Heads | Two | Four |
| Filling Range | 1ml to 20ml | 1ml to 10ml |
| Input Specification |
| |
| Ampoule Diameter | 9mm to 17mm | |
| Ampoule Height | 50mm to 95mm | |
| Filling Accuracy | 1% | |
| Power Supply | 1 H.P. | |
| Electrical Characteristics | 220 Volts, Single Phase, 50 Hertz | |
| Utility |
| |
| Nitrogen Pressure | 1kg/Cm2 | |
| Oxygen Pressure | 1kg/Cm2 | |
|
|
| |
| LPG Pressure | 0.5 kg/Cm2 | |
| Overall Dimension | 915mm (L) | 1200mm (L) |
