Send InquiryHigh Speed Ampoule Filler
Product Details:
- Material Stainless Steel
- Feature Chemical Food Medical
- Computerized No
- Automatic Grade Semi-Automatic
- Control System Human Machine Interface
- Drive Type Electric
- Power 220 Volt (v)
High Speed Ampoule Filler Price And Quantity
- 1 Unit
- 350000 INR
High Speed Ampoule Filler Product Specifications
- No
- Chemical Food Medical
- 220 Volt (v)
- 1 Year
- Human Machine Interface
- 1000x600x950 Millimeter (mm)
- 100-200 Kilograms (kg)
- Electric
- Semi-Automatic
- Brown
- 380 Volt (v)
- Stainless Steel
High Speed Ampoule Filler Trade Information
- Nhava Sheva
- Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe Australia North America Eastern Europe Central America Africa Middle East South America Asia
- All India
Product Description

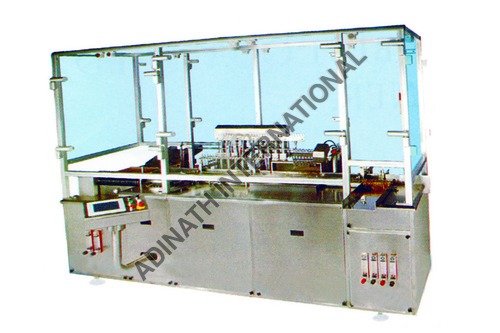

High Speed Ampoule FillerHigh Speed Ampoule Filler built on principle of slant travel of ampoules while filling and sealing, to take care of vide variation of ampoule neck dimensions, thicknesses of available standard ampoules.
The Filling unit built on S. S. Square pipe frame and totally encompassed with S. S. Coverings, in pleasing mat finish, Further, the large opening available at the bottom side for ease of absolute cleaning.
The pendant type electrical control panel is lifted from machine for ease of operation and safety.
Salient Features :
Compact GMP model.
All contact parts made from high quality Stainless Steel 316 & other Non-contact parts made from Stainless Steel 304.
Minimum change over parts from 1ml to 20ml ampoule size.
No Ampoule - No Filling system.
Ampoule neck centering during gas flushing and filling operations.
Possibility of nitrogen gas flushing before, during and after filling.
Full accessibility allows easy maintenance.
Machine equipped with pre-warming station.
Minimum change over time, little maintenance & easy cleaning.
Technical Specification :
| Model | AFS-200 |
| No. of Head | Eight |
| Ampoule Handling Range | 1 ml to 10 ml |
| Production Output | 100 to 200 ampoules/minute |
| Filling Accuracy | +1% |
| Require Gas for Sealing | LPG & Oxygen |
| Nitrogen Flushing | Pre & Post Nitrogen Flushing Available |
| Power Specification | 0.5 H.P. |
| Electrical Characteristics | 230 Volts, Single Phase, 50 Hertz, 4 Wire System |
| Contact Parts | Made from Stainless Steel 316L |
| Non Contact Parts | Made from Stainless Steel 304 |
| Overall Dimension | 2700mm (L) x 1400mm (W) x 1785mm (H) |
