Single Stroke Ampoule Filler

Product Description

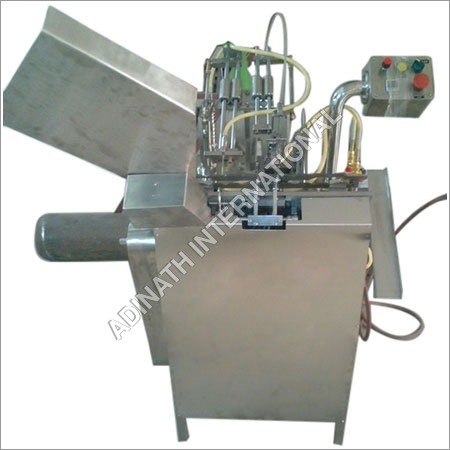

Single Stroke Ampoule Filler

Single Stroke Ampoule Filler is compact & versatile machine for the filling & sealing of glass ampoules. Ampoule Filling Sealing Machine uses in the pharmaceutical industry, apart from this Ampoule Filling Sealing Machine also having application in industries like biotech, cosmetic & chemicals.

Salient Features:-

• Compact GMP model.
•  Production output up to 1800 Ampoules per hour.
• All contact parts made from High Quality Stainless Steel 316L & Non-contact parts made from Stainless Steel 304.
•  Minimum change over parts from 1ml to 20ml ampoule size.
• No Ampoule  No Filling system.
• Ampoule neck centering during gas flushing and filling operations.
• Possibility of nitrogen gas flushing before and after filling.
• Full accessibility allows easy maintenance.
• Machine equipped with pre-warming station.
• Flow Meters for regulating flames easily.
• Minimum change over time, little maintenance, easy cleaning.

Process Operation:-

Empty washed & sterilized ampoules receive automatically on wire mesh conveyor belt from outfeed of sterilizing tunnel. Ampoule fed automatically into in-feed hopper from the left hand side of the machine and feed to receiving rack through cassette. The moving rack which moves horizontally collect four ampoules from the receiving rack and transfer the ampoule to the machine in left to right in an inclined position through pre-gassing. Pre-gassing, Filling, Post Gassing, Pre-heating & sealing station.

Technical Specification:-
