Send InquiryTwo Needle Ampoule Filling Machine
Product Details:
- Material SS 304
- Feature Food Medical
- Computerized No
- Automatic Grade Semi-Automatic
- Control System Human Machine Interface
- Drive Type Electric
- Power 220 Volt (v)
Two Needle Ampoule Filling Machine Price And Quantity
- 1 Unit
- 200000 INR
Two Needle Ampoule Filling Machine Product Specifications
- 380 Volt (v)
- Electric
- 100-200 Kilograms (kg)
- Silver
- 1 Year
- Human Machine Interface
- No
- Semi-Automatic
- Food Medical
- SS 304
- 220 Volt (v)
Two Needle Ampoule Filling Machine Trade Information
- Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe Eastern Europe Middle East Central America Africa South America Australia Asia North America
- All India
Product Description

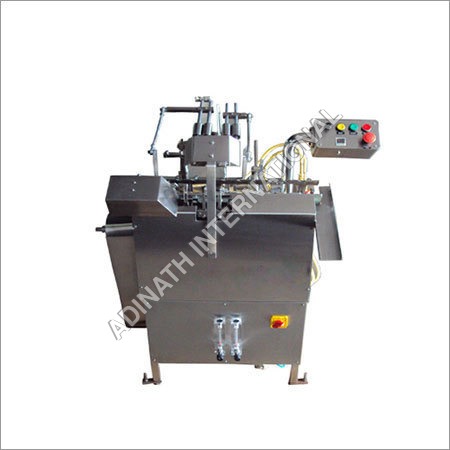

Two Needle Ampoule Filling MachineTwo Needle Ampoule Filling Sealing Machine built on principle of slant travel of ampoules while filling and sealing, to take care of wide variation of ampoule neck dimensions, thicknesses of available standard ampoules.
The Filling unit built on S. S. Square pipe frame and totally encompassed with S. S. Coverings, in pleasing mat finish, Further, the large opening available at the bottom side for ease of absolute cleaning.
The pendant type electrical control panel is lifted from machine for ease of operation and safety.
Salient Features :
Compact GMP model.
All contact parts made from high quality Stainless Steel 316 & other Non-contact parts made from Stainless Steel 304.
Minimum change over parts from 1ml to 20ml ampoule size.
No Ampoule - No Filling system.
Ampoule neck centering during gas flushing and filling operations.
Possibility of nitrogen gas flushing before, during and after filling.
Full accessibility allows easy maintenance.
Machine equipped with pre-warming station.
Minimum change over time, little maintenance & easy cleaning.
Technical Specification :
| Model | AFS-55 |
| No. of Syringe | Double |
| Ampoule Handling Range | 1 ml to 20 ml |
| Production Output | 30 to 55 ampoules/minute |
| Filling Accuracy | +1% |
| Require Gas for Sealing | LPG & Oxygen |
| Nitrogen Flushing | Pre & Post Nitrogen Flushing Available |
| Power Specification | 0.5 H.P. |
| Electrical Characteristics | 230 Volts, Single Phase, 50 Hertz, 4 Wire System |
| Contact Parts | Made from Stainless Steel 316L |
| Non Contact Parts | Made from Stainless Steel 304 |
| Overall Dimension | 915mm (L) x 760mm (W) x 965mm (H) |
