Semi Automatic Sticker Labeling Machine

Semi Automatic Sticker Labeling Machine

Product Details:

  • Material Mild Steel
  • Computerized No
  • Automatic Grade Automatic
  • Control System Human Machine Interface
  • Power Source Electric
  • Voltage 220 Volt (v)
  • Weight (kg) 100-200 Kilograms (kg)
200000.00 - 300000.00 INR
Get a Price/Quote
Request To Call Back Send Inquiry
X

Semi Automatic Sticker Labeling Machine Price And Quantity

  • 1 Bottle
  • 200000.00 - 300000.00 INR

Semi Automatic Sticker Labeling Machine Product Specifications

  • 1 Year
  • 220 Volt (v)
  • No
  • Human Machine Interface
  • Automatic
  • 2000x1700x1500 Millimeter (mm)
  • 100-200 Kilograms (kg)
  • Silver
  • Electric
  • Mild Steel

Semi Automatic Sticker Labeling Machine Trade Information

  • Nhava Sheva
  • Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID), Cash Advance (CA)
  • 4 Bottle Per Month
  • 4 Week
  • Wooden Box.
  • Western Europe, North America, Central America, Eastern Europe, Africa, Middle East, South America, Australia, Asia
  • All India

Product Description

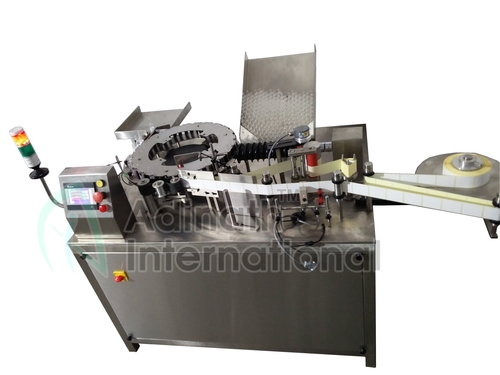

Semi Automatic Sticker Labeling Machine is uses for the labeling of filled & sealed glass ampoules. This rotary labeling machine is compact model uses very less space due to its rotary structure. Automatic Ampoule Labeling Machine labels 1ml to 20ml glass ampoules with maximum speed of 120 ampoules per minute. Machine complies as per current good manufacturing standards.


Salient Features



Production Speed up to 120 containers per minute.


S.S. 304 Constructions.


Accurate label placement.


Micro processor Control unit with LCD Display.


Full Pharmaceutical security package system.


Secondary Pressing unit.


Any kind of printing device can be accommodated with machine.


Imported Gear Motor for Conveyor & Pressing unit.


Imported Gear Box for Conveyor & Pressing unit.


Programmable MMI Unit.


A.C. Frequency Drive for main drive.


In built Speed Indicator & Counter.


Stepper Motor with Controller.


Imported Sensor for Label & Container.

Process Operation


The containers received from feed worm to star wheel precisely spaced and reach at the label wrap around point at the similar distance. While entering at the labeling point, container sensor start with servo motor and pressing belt press the label smoothly between pad and belt. Label sensor photocell detects the space between two labels and hold them until the next container comes. Meantime of this operation pneumatic printing attachment prints.

Technical Specification
Model ASASL-120
Production Rate Up to 120 Ampoules/Minute
Input Specification -
Ampoule Diameter: 10mm to 18mm
Ampoule Height: 50mm to 105mm
Label Size -
Label Length: 20mm to 50mm
Label Width: 15mm to 60mm
Power Specification 0.5 H.P.
Electrical Characteristics 230 Volts, Single Phase 400/750W Servo Motor with encoder
Overall Dimension 1100mm (L) x 1000mm (W) x 1100mm (H)



Other Products in 'Automatic Sticker Labeling Machine' category

Automatic Ampoule Vial Labeling Machine
Send Inquiry

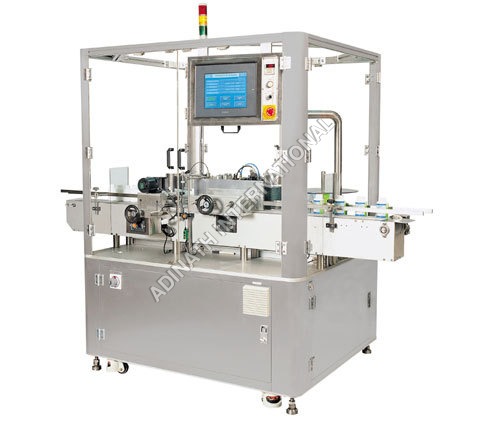

Automatic Vial & Bottle Sticker Labeling Machine
Send Inquiry
Automatic Sticker Labeling Machine
Send Inquiry

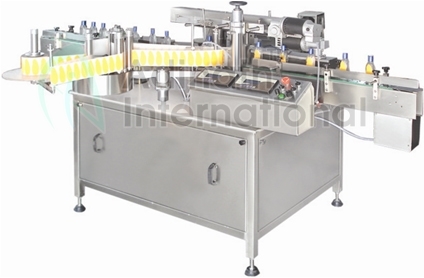

Ampoule Vial Sticker Labeling Plant
