Send InquiryAutomatic Ampoule Sticker Labeling Machine
Product Details:
- Material Mild Steel
- Computerized No
- Automatic Grade Automatic
- Control System Human Machine Interface
- Power Source Electric
- Voltage 220 Volt (v)
- Weight (kg) 100-200 Kilograms (kg)
Automatic Ampoule Sticker Labeling Machine Price And Quantity
- 3.2500000 INR
- 1 Unit
Automatic Ampoule Sticker Labeling Machine Product Specifications
- Human Machine Interface
- Silver
- Mild Steel
- 2000x1700x1500 Millimeter (mm)
- Electric
- No
- 100-200 Kilograms (kg)
- 220 Volt (v)
- Automatic
- 1 Year
Automatic Ampoule Sticker Labeling Machine Trade Information
- Nhava Sheva
- Cash Advance (CA) Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe Australia North America Eastern Europe Middle East Central America Africa South America Asia
- All India
Product Description

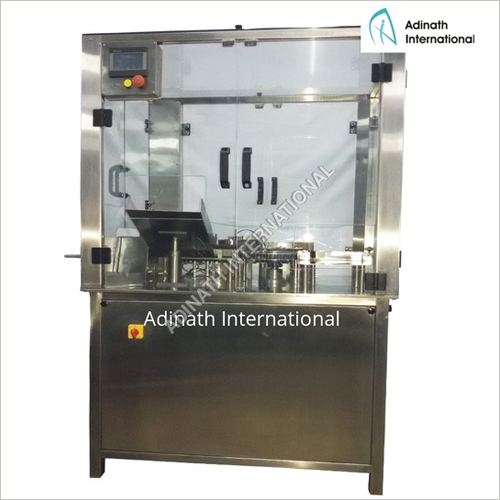

Automatic Ampoule Sticker Labeling Machine
Automatic Ampoule Labeler is suitable for the labels on filled & sealed glass ampoule & vials. This compact cGMP model is most preferred choice of medium & large scale injectable units in pharmaceutical industry.
Salient Features
-
Compact cGMP model.
-
Rotary model hence less space required.
-
High Production Speed up to 120 containers per minute.
-
No Ampoule-No Label system.
-
Accurate label placement.
-
Micro Processor Control unit with LCD display
-
Programmable MMI Unit
-
A.C. Frequency Drive for main drive
-
In built Speed Indicator & Counter
-
Stepper Motor with Controller
-
Imported Sensor for Label & Container
-
Any kind of printing device can be accommodated with machine.
Process Operation
The containers received from feed worm to star wheel precisely spaced and reach at the label wrap around point at the similar distance. While entering at the labeling point, container sensor start with servo motor and pressing belt press the label smoothly between pad and belt. Label sensor photocell detects space between two labels and holds them until the next container comes. Meantime of the operation, pneumatic printing attachments complete printing process.
Technical Specification
| Model | AASL-120 |
| Production Output | Up to 120 Ampoules/Minute |
| Ampoule Range | 1ml to 10ml |
| Label Length: | 12mm to 50mm |
| Label Width: | 8mm to 60mm |
| Label Roll Dia.: | 300mm/400mm |
| Core Dia.: | 75mm/76mm |
| Power Specification | 0.75 H.P. |
| Electrical Characteristics | 230 Volts, Single Phase 400/750W Servo Motor with encoder |
| Overall Dimension | 1150mm (L) x 1000mm (W) x 1000mm (H) |
