Send InquiryInjection Ampoule Filling Machine
Product Details:
- Material Stainless Steel
- Computerized No
- Automatic Grade Semi-Automatic
- Control System Human Machine Interface
- Drive Type Electric
- Power 220 Volt (v)
- Voltage 380 Volt (v)
Injection Ampoule Filling Machine Price And Quantity
- 150000 INR
- 1 Unit
Injection Ampoule Filling Machine Product Specifications
- Electric
- 380 Volt (v)
- Human Machine Interface
- 220 Volt (v)
- 100-200 Kilograms (kg)
- No
- Stainless Steel
- 1 Year
- Silver
- Semi-Automatic
- 900x870x1950 Millimeter (mm)
Injection Ampoule Filling Machine Trade Information
- Nhava Sheva
- Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe Australia North America South America Eastern Europe Middle East Central America Africa Asia
- All India
Product Description

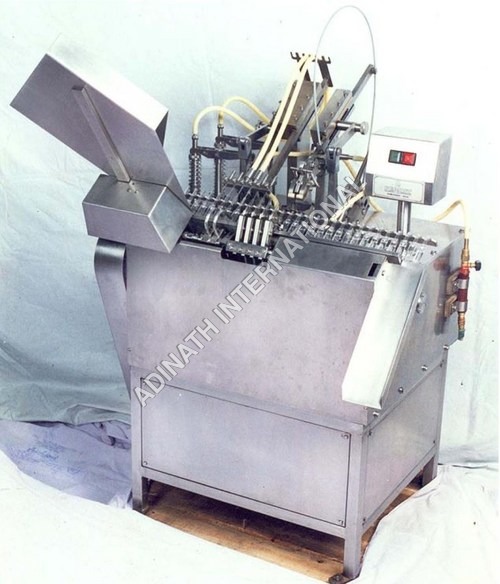

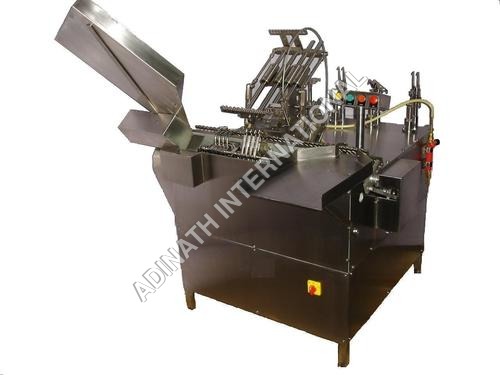

Injection Ampoule Filling Machine
Injection Ampoule Filling Machine is compact & versatile machine for the filling & sealing of glass ampoules. Ampoule Filling Sealing Machine uses in the pharmaceutical industry, apart from this Ampoule Filling Sealing Machine also having application in industries like biotech, cosmetic & chemicals.
Salient Features:-
- Compact GMP model.
- Higher output up to 6000 Ampoules per hour.
- All contact parts made from High Quality Stainless Steel 316L & Non-contact parts made from Stainless Steel 304.
- Minimum change over parts from 1ml to 10ml ampoule size.
- No Ampoule , No Filling system.
- Ampoule neck centering during gas flushing and filling operations.
- Possibility of nitrogen gas flushing before and after filling.
- Full accessibility allows easy maintenance.
- Machine equipped with pre-warming station.
- Flow Meters for regulating flames easily.
- Minimum change over time, little maintenance, easy cleaning.
Process Operation:-
Empty washed & sterilized ampoules receive automatically on wire mesh conveyor belt from outfeed of sterilizing tunnel. Ampoule fed automatically into in-feed hopper from the left hand side of the machine and feed to receiving rack through cassette. The moving rack which moves horizontally collect four ampoules from the receiving rack and transfer the ampoule to the machine in left to right in an inclined position through pre-gassing. Pre-gassing, Filling, Post Gassing, Pre-heating & sealing station.
Technical Specification:-
| Model: | AFS-55 | AFS-100 |
| Production Output | 30 to 55 Ampoules/Minute | 60 to 100 Ampoules/Minute |
| No. of Filling & Sealing Heads | Two | Four |
| Filling Range | 1ml to 20ml | 1ml to 10ml |
| Input Specification | - | - |
| Ampoule Diameter | 9mm to 17mm | 9mm to 17mm |
| Ampoule Height | 50mm to 95mm | 50mm to 95mm |
| Filling Accuracy | ± 0.5% - 1% | ± 0.5% - 1% |
| Power Supply | 1 H.P. | 1 H.P. |
| Electrical Characteristics | 220 Volts, Single Phase, 50 Hertz | 220 Volts, Single Phase, 50 Hertz |
| Utility | - | - |
| Nitrogen Pressure | 1kg/Cm ² | 1kg/Cm ² |
| Oxygen Pressure | 1kg/Cm ² | 1kg/Cm ² |
| LPG Pressure | 0.5 kg/Cm ² | 0.5 kg/Cm ² |
| Overall Dimension | 915mm (L) x 760mm (W) x 965mm (H) | 1200mm (L) x 1070mm (W) x 965mm (H) |
