Injectable Ampoule Filler

Injectable Ampoule Filler

Product Details:

  • Material Stainless Steel
  • Computerized No
  • Automatic Grade Semi-Automatic
  • Control System Human Machine Interface
  • Drive Type Electric
  • Power 220 Volt (v)
  • Voltage 380 Volt (v)
100000.00 - 200000.00 INR
Get a Price/Quote
Request To Call Back Send Inquiry
X

Injectable Ampoule Filler Price And Quantity

  • 100000.00 - 200000.00 INR
  • 1 Unit

Injectable Ampoule Filler Product Specifications

  • 220 Volt (v)
  • 1000x600x950 Millimeter (mm)
  • Electric
  • Silver
  • Stainless Steel
  • No
  • 1 Year
  • Human Machine Interface
  • 100-200 Kilograms (kg)
  • 380 Volt (v)
  • Semi-Automatic

Injectable Ampoule Filler Trade Information

  • Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash Advance (CA)
  • 4 Unit Per Month
  • 4 Week
  • Wooden Box.
  • Western Europe, Australia, North America, South America, Eastern Europe, Middle East, Africa, Central America, Asia
  • All India

Product Description

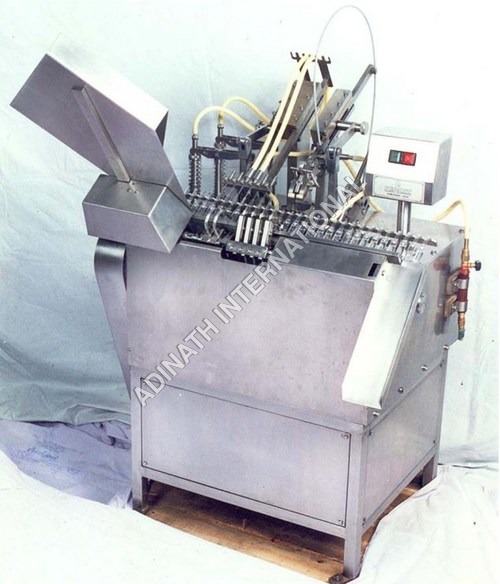

 Injectable Ampoule Fillier



Injectable Ampoule Filler is compact & versatile machine for the filling & sealing of glass ampoules. Ampoule Filling Sealing Machine uses in the pharmaceutical industry, apart from this Ampoule Filling Sealing Machine also having application in industries like biotech, cosmetic & chemicals.

We are having different models of Ampoule Filling & Sealing Machine suitable as per need of small, medium & large volume injectable preparations. Our Automatic Six Head Ampoule Filling & Sealing Machine provides output up to 9000 ampoules/hour suitable for large batch production, Our Automatic Four Head Ampoule Filling & Sealing Machine provides output of 7200 ampoules/hour suitable for medium batch production and our Automatic Two Head Ampoule Filling & Sealing Machine provides output of 3300 ampoules/hour suitable for small & medium batch production.


Salient Features


Compact cGMP model.

Higher output up to 6000 Ampoules per hour.

All contact parts made from High Quality Stainless Steel 316L & Non-contact parts made from Stainless Steel 304.

Minimum change over parts from 1ml to 10ml ampoule size.

“No Ampoule – No Filling” system.

Ampoule neck centering during gas flushing and filling operations.

Possibility of nitrogen gas flushing before, during and after filling.

Full accessibility allows easy maintenance.

Machine equipped with pre-warming station.

Flow Meters for regulating flames easily.

Minimum change over time, little maintenance, easy cleaning.

Process Operation


Empty washed & sterilized ampoules receive automatically on wire mesh conveyor belt from outfeed of sterilizing tunnel. Ampoule fed automatically into in-feed hopper from the left hand side of the machine and feed to receiving rack through cassette. The moving rack which moves horizontally collect four ampoules from the receiving rack and transfer the ampoule to the machine in left to right in an inclined position through pre-gassing. Pre-gassing, Filling, Post Gassing, Pre-heating & sealing sta

Technical Specification
Model: AFS-55 AFS-100
Production Output 30 to 55 Ampoules/Minute 60 to 100 Ampoules/Minute
No. of Filling & Sealing Heads Two Four
Filling Range 1ml to 25ml 1ml to 10ml
Input Specification - -
Ampoule Diameter 9mm to 17mm 9mm to 17mm
Ampoule Height 50mm to 95mm 50mm to 95mm
Filling Accuracy ± 0.5% - 1% ± 0.5% - 1%
Power Supply 1 H.P. 1 H.P.
Electrical Characteristics 220 Volts, Single Phase, 50 Hertz 220 Volts, Single Phase, 50 Hertz
Utility - -
Nitrogen Pressure 1kg/Cm² 1kg/Cm²
Oxygen Pressure 1kg/Cm² 1kg/Cm²
LPG Pressure 0.5 kg/Cm² 0.5 kg/Cm²
Overall Dimension 915mm (L) x 760mm (W) x 965mm (H) 1200mm (L) x 1070mm (W) x 965mm (H)
