High Spees Ampoule Sticker Labeling Machine

Product Description

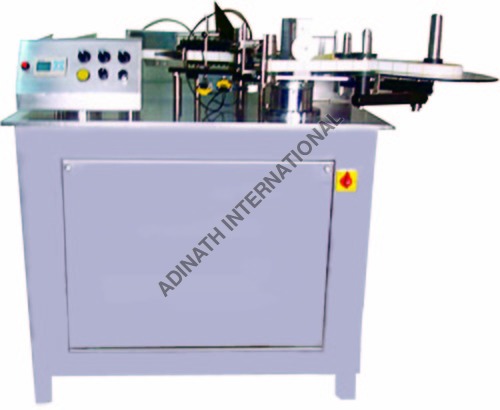

Automatic Ampoule Sticker Labeling Machine

Automatic Ampoule Sticker Labeling Machine is uses for the labeling of filled & sealed glass ampoules. This rotary labeling machine is compact model uses very less space due to its rotary structure. High Speed Automatic Ampoule Labeling Machine labels 1ml to 20ml glass ampoules with maximum speed of 250 ampoules per minute. Machine complies as per current good manufacturing standards.

Salient Features

• High Production Speed up to 250 containers per minute.
• S.S. 304 Constructions.
• Accurate label placement.
• Micro processor Control unit with LCD Display.
• Full Pharmaceutical security package system.
• Secondary Pressing unit.
• Any kind of printing device can be accommodated with machine.
• Imported Gear Motor for Conveyor & Pressing unit.
• Imported Gear Box for Conveyor & Pressing unit.
• Programmable MMI Unit.
• A.C. Frequency Drive for main drive.
• In built Speed Indicator & Counter.
• Stepper Motor with Controller.
• Imported Sensor for Label & Container.

Process Operation

The containers received from feed worm to star wheel precisely spaced and reach at the label wrap around point at the similar distance. While entering at the labeling point, container sensor start with servo motor and pressing belt press the label smoothly between pad and belt. Label sensor photocell detects the space between two labels and hold them until the next container comes. Meantime of this operation pneumatic printing attachment prints.
