Send InquiryAutomatic Ampoule Labeler
Product Details:
- Material Mild Steel
- Computerized No
- Automatic Grade Automatic
- Power Source Electric
- Voltage 240 Volt (v)
- Weight (kg) 100-200 Kilograms (kg)
- Dimension (L*W*H) 1500 x 600 x 1200 Millimeter (mm)
Automatic Ampoule Labeler Price And Quantity
- 3.2500000 INR
- 1 Unit
Automatic Ampoule Labeler Product Specifications
- 1 Year
- 1500 x 600 x 1200 Millimeter (mm)
- 240 Volt (v)
- 100-200 Kilograms (kg)
- No
- Automatic
- Mild Steel
- Electric
- Silver
Automatic Ampoule Labeler Trade Information
- Nhava Sheva
- Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe Australia North America Eastern Europe Central America Africa Middle East South America Asia
- All India
Product Description

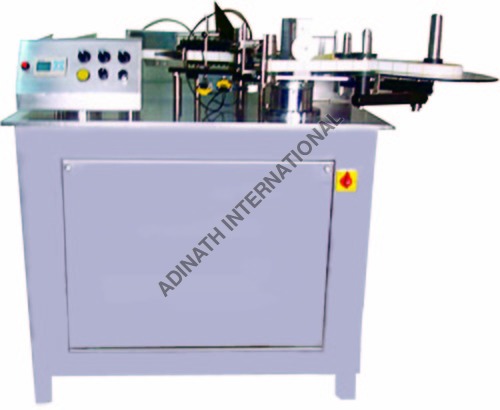

For many years, we are instrumental in manufacturing and supplying a wide array of Automatic Ampoule Labeler. Offered labeler is efficiently manufactured under the direction of our qualified professionals using optimal quality components and latest technology at our well-equipped production unit. This labeler is used for the labeling of filled & sealed glass ampoules. In addition, clients can avail this Automatic Ampoule Labeler from us in varied technical specifications at reasonable prices.
Features:
-
High Production Speed up to 250 containers per minute.
-
S.S. 304 Constructions.
-
Accurate label placement.
-
Micro processor Control unit with LCD Display.
-
Full Pharmaceutical security package system.
-
Secondary Pressing unit.
-
Any kind of printing device can be accommodated with machine.
-
Imported Gear Motor for Conveyor & Pressing unit.
-
Imported Gear Box for Conveyor & Pressing unit.
-
Programmable MMI Unit.
-
A.C. Frequency Drive for main drive.
-
In built Speed Indicator & Counter.
-
Stepper Motor with Controller.
-
Imported Sensor for Label & Container.
Process Operation
The containers received from feed worm to star wheel precisely spaced and reach at the label wrap around point at the similar distance. While entering at the labeling point, container sensor start with servo motor and pressing belt press the label smoothly between pad and belt. Label sensor photocell detects the space between two labels and hold them until the next container comes. Meantime of this operation pneumatic printing attachment prints.
Technical Specification
|
Model |
AASL-250 |
|
Production Rate |
Up to 250 Ampoules/Minute |
|
Input Specification |
- |
|
Ampoule Diameter: |
10mm to 18mm |
|
Ampoule Height: |
50mm to 105mm |
|
Label Size |
- |
|
Label Length: |
20mm to 50mm |
|
Label Width: |
15mm to 60mm |
|
Power Specification |
0.5 H.P. |
|
Electrical Characteristics |
230 Volts, Single Phase 400/750W Servo Motor with encoder |
|
Overall Dimension |
1250mm (L) x 1100mm (W) x 1100mm (H) |
