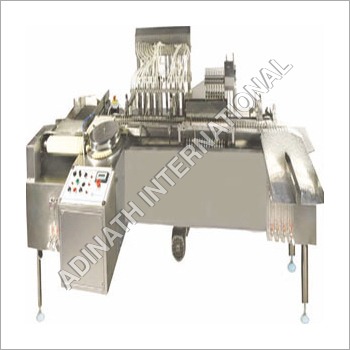

Send InquiryHigh Speed Automatic Ampoule Filling and Sealing Machine
Product Details:
- Material Stainless Steel
- Feature Chemical Food Medical
- Computerized No
- Automatic Grade Semi-Automatic
- Control System Human Machine Interface
- Drive Type Electric
- Power 220 Volt (v)
3.500000 INR
X
High Speed Automatic Ampoule Filling and Sealing Machine Price And Quantity
- 3.500000 INR
- 1 Unit
High Speed Automatic Ampoule Filling and Sealing Machine Product Specifications
- 100-200 Kilograms (kg)
- 220 Volt (v)
- Stainless Steel
- Semi-Automatic
- Electric
- 650 x 965 x 1200 Millimeter (mm)
- 1 Year
- Chemical Food Medical
- No
- 220 Volt (v)
- Silver
- Human Machine Interface
High Speed Automatic Ampoule Filling and Sealing Machine Trade Information
- Nhava Sheva
- Cash Advance (CA) Delivery Point (DP) Letter of Credit (L/C) Cash in Advance (CID)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Australia North America South America Eastern Europe Western Europe Middle East Central America Africa Asia
- All India
Product Description
High Speed Automatic Ampoule Filling & Sealing Machine
High Speed Automatic Ampoule Filling & Sealing Machine built on principle of slant travel of ampoules while filling and sealing, to take
care of wide variation of ampoule neck dimensions, thicknesses of available standard ampoules.
The Filling unit built on S. S. Square pipe frame and totally encompassed with S. S. Coverings, in pleasing matt finish, Further, the large opening available at the bottom side for ease of absolute cleaning.
The pendant type electrical control panel is lifted from machine for ease of operation and safety.
Salient Features:
- Compact GMP model.
- All contact parts made from high quality Stainless Steel 316L & other Non-contact parts made from Stainless Steel 304.
- Minimum change over parts from 1ml to 10ml ampoule size.
- No Ampoule No Filling system.
- Ampoule neck centering during gas flushing and filling operations.
- Possibility of nitrogen gas flushing before, during and after filling.
- Full accessibility allows easy maintenance.
- Machine equipped with pre-warming station.
- Minimum change over time, little maintenance & easy cleaning.
Technical Specification:
| Model: | AFS-250 |
| Production Rate | 120 to 250 Ampoules/Minute |
| No. of Filling & Sealing Head | Eight |
| Input Specification | - |
| Ampoule Diameter | 9mm to 17mm |
| Ampoule Height | 50mm to 95mm |
| Filling Range | 1ml to 10ml |
| Utility | - |
| Nitrogen Pressure | 1kg/Cm2 |
| Oxygen Pressure | 1kg/Cm2 |
| LPG Pressure | 0.5 kg/Cm2 |
| Gas for Sealing | Oxygen + L.P.G. (Liquid petroleum gas) |
| Optional Accessories | Programmable Logic Control (System) with MMI |
| - | Aluminum Profile Cabinet covering full machine |
| Overall Dimension | 2780mm x 1200mm x 1785mm |
