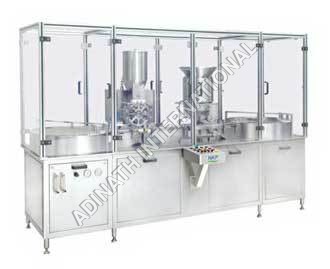

Send InquiryDry Powder Injection Filling Machine
Product Details:
- Material SS 304
- Computerized No
- Automatic Grade Semi-Automatic
- Control System Human Machine Interface
- Drive Type Electric
- Power 0.5 Volt (v)
- Voltage 240 Volt (v)
Dry Powder Injection Filling Machine Price And Quantity
- 2.2500000 INR
- 1 Unit
Dry Powder Injection Filling Machine Product Specifications
- Silver
- 400 x 600 x 500 Millimeter (mm)
- 240 Volt (v)
- No
- 100-200 Kilograms (kg)
- SS 304
- Semi-Automatic
- 1 Year
- 0.5 Volt (v)
- Electric
- Human Machine Interface
Dry Powder Injection Filling Machine Trade Information
- Nhava Sheva
- Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Asia Australia Eastern Europe Western Europe Middle East Central America Africa South America North America
- All India
Product Description
Dry Injection Filling Machine is suitable to fill sterile powder into vials/Bottles. The precision built welded steel frame is encompassed with stainless steel sheets with access doors for servicing the machine. All parts coming in contact with container, powder and rubber stopper or exposed to the atmosphere are made of stainless steel for long life.
Salient Features:-
- Compact cGMP model.
- “No Vial, No Filling†system eliminates wastage of costly powder.
- Multiple Dosing system.
- High Volumetric Filling Accuracy of ±1% of uniform density Injectable powder can be ensured by setting the depth of piston in the port of powder wheel.
- Built-in Rubber Stoppering Unit saves lot of space in the Sterile Area & reduces the length of Laminar Flow.
- Individual drive for the filling & sealing to match the speed of filling & sealing.
- All motors are provided with appropriate contractors and relays for the protection against any overload or jamming.
- Safety clutch system to avoid Vial breakage.
- Variable Frequency Drive for speed control.
- All contact parts are easily removable for mandatory Autoclaving/ Sterilization.
- Digital counter for counting production output.
Technical Specification:
|
Model |
APF-120 |
|
Production Rate |
30 to 120 Vials or Bottles/Minute |
|
Input Specification Container Diameter: Container Height Rubber Stopper: |
25mm to 38mm 36mm to 75mm 20mm, 28mm & 30mm Butyl |
|
Fill Capacity |
50 mg. to 1.5 gms with the help of change parts. Up to 6 gms filling by multiple dosing. |
|
Accuracy: |
± 1% depending upon consistency and uniformity of bulk density of Injectable Powder under controlled level of humidity (Below 28% Rh) |
|
Optional Accessories:
|
Pure Air Filter, Vacuum Pump Oil Free Air Compressor Online Pre-Media Filling Arrangement Programmable Logic Control (System) with MMI Aluminum Profile Cabinet covering full machine |
|
Utility: Compressed Air: Vacuum: Relational Humidity: |
Max. 2 Kg./Cm² Oil Free 25 Hg. @ 300 LPM Displacement Below 28% |
|
Overall Dimension: |
2100mm (L) X 842mm (W) X 1700mm (H) |
|
|
(Dimension include main machine with in-feed turn table) |
Note: Electrical characteristics can be adjusted as per customer’s requirements.
* Rights of technical improvement & modification reserved.
* Illustration & dimensions are shown for information purpose only.
