Send InquiryCompact Ampoule Filling Machine
Product Details:
- Material Stainless Steel
- Feature Chemical Food Medical
- Computerized No
- Automatic Grade Semi-Automatic
- Control System Human Machine Interface
- Drive Type Electric
- Power 220 Volt (v)
Compact Ampoule Filling Machine Price And Quantity
- 1 Unit
- 100000.00 - 200000.00 INR
Compact Ampoule Filling Machine Product Specifications
- Chemical Food Medical
- 100-200 Kilograms (kg)
- Stainless Steel
- 220 Volt (v)
- Electric
- Silver
- No
- Semi-Automatic
- Human Machine Interface
- 1 Year
- 380 Electromagnetic (emu)
- 900x870x1950 Millimeter (mm)
Compact Ampoule Filling Machine Trade Information
- Letter of Credit (L/C) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe Australia North America South America Eastern Europe Middle East Central America Africa Asia
- All India
Product Description

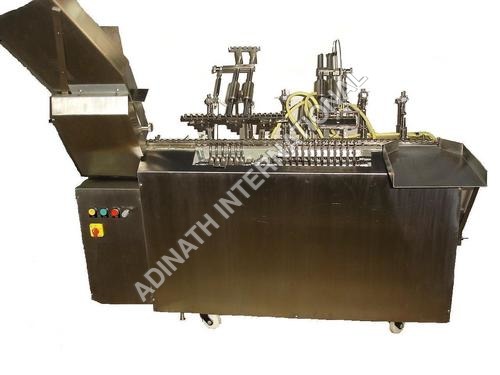

Compact Ampoule Filling Sealing Machine
Compact Ampoule Filling Sealing Machine built on principle of slant travel of ampoules while filling and sealing, to take care of vide variation of ampoule neck dimensions, thicknesses of available standard ampoules.
The Filling unit built on S. S. Square pipe frame and totally encompassed with S. S. Coverings, in pleasing matt finish, Further, the large opening available at the bottom side for ease of absolute cleaning.
The pendant type electrical control panel is lifted from machine for ease of operation and safety.
Salient Features:
- Compact GMP model.
- All contact parts made from high quality Stainless Steel 316 & other Non-contact parts made from Stainless Steel 304.
- Minimum change over parts from 1ml to 20ml ampoule size.
- No Ampoule - No Filling system.
- Ampoule neck centering during gas flushing and filling operations.
- Possibility of nitrogen gas flushing before, during and after filling.
- Full accessibility allows easy maintenance.
- Machine equipped with pre-warming station.
- Minimum change over time, little maintenance & easy cleaning.
Process Operation:
The sterilized ampoule tray directly loaded in to slant hopper of the unit. The Synchronized star wheel delivers ampoules, one by one on moving eccentric ampoule rack in single.
During the stoppage of rack sequentially pre-gassing, filling, post gassing, pre heating and final sealing is achieved.
Technical Specification:
| Model | AFS-30 |
| No. of Head | Single |
| Ampoule Handling Range | 1 ml to 20 ml |
| Production Output | 15 to 30 ampoules/minute |
| Filling Accuracy | +1% |
| Require Gas for Sealing | LPG & Oxygen |
| Nitrogen Flushing | Pre & Post Nitrogen Flushing Available |
| Power Specification | 0.5 H.P. |
| Electrical Characteristics | 230 Volts, Single Phase, 50 Hertz, 4 Wire System |
| Contact Parts | Made from Stainless Steel 316L |
| Non Contact Parts | Made from Stainless Steel 304 |
| Overall Dimension | 915mm (L) x 610mm (W) x 965mm (H) |
