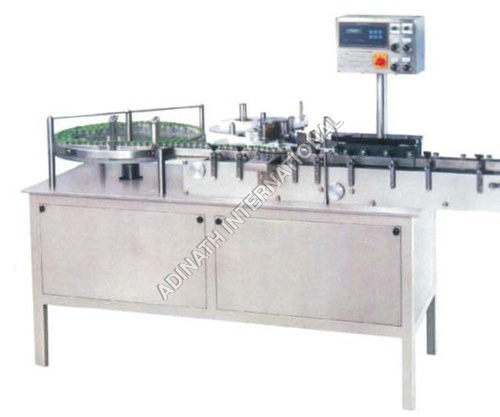

Send InquiryCan Sticker Labeler Machine
Product Details:
- Material Stainless Steel
- Computerized No
- Automatic Grade Automatic
- Control System Human Machine Interface
- Power Source Electric
- Voltage 380 Volt (v)
- Weight (kg) 100-200 Kilograms (kg)
Can Sticker Labeler Machine Price And Quantity
- 200000.00 - 300000.00 INR
- 1 Unit
Can Sticker Labeler Machine Product Specifications
- 100-200 Kilograms (kg)
- 2250 x 800 x 1750 Millimeter (mm)
- Human Machine Interface
- Stainless Steel
- Silver
- 380 Volt (v)
- No
- 1 Year
- Automatic
- Electric
Can Sticker Labeler Machine Trade Information
- Nhava Sheva
- Cash Advance (CA) Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe Australia North America Eastern Europe Central America Africa Middle East South America Asia
- All India
Product Description
Salient Features:-
- Production Speed up to 120 containers per minute.
- S.S. 304 Constructions.
- Accurate label placement.
- Micro processor Control unit with LCD Display.
- Full Pharmaceutical security package system.
- Secondary Pressing unit.
- Any kind of printing device can be accommodated with machine.
- Imported Gear Motor for Conveyor & Pressing unit.
- Imported Gear Box for Conveyor & Pressing unit.
- A.C. Frequency Drive for main drive.
- In built Speed Indicator & Counter.
- Stepper Motor with Controller.
- Imported Sensor for Label & Container.
Process Operation:- The containers received from feed worm to star wheel precisely spaced and reach at the label wrap around point at the similar distance. While entering at the labeling point, container sensor start with servo motor and pressing belt press the label smoothly between pad and belt. Label sensor photocell detects the space between two labels and hold them until the next container comes. Meantime of this operation pneumatic printing attachment prints.
Technical Specification:-
| Model | ASL-120 |
| Production Rate | Up to 120 Containers/Minute |
| Input Specification | - |
| Ampoule Diameter: | 10mm to 18mm |
| Ampoule Height: | 50mm to 105mm |
| Label Size | - |
| Label Length: | 20mm to 50mm |
| Label Width: | 15mm to 60mm |
| Power Specification | 0.5 H.P. |
| Electrical Characteristics | 230 Volts, Single Phase 400/750W Servo Motor with encoder |
| Overall Dimension | 1100mm (L) x 1000mm (W) x 1100mm (H) |
