Sticker Labeling Machine for Wrap Around

Sticker Labeling Machine for Wrap Around

Product Details:

  • Material Stainless Steel
  • Computerized No
  • Automatic Grade Automatic
  • Control System Human Machine Interface
  • Power Source Electric
  • Voltage 380 Volt (v)
  • Weight (kg) 100-200 Kilograms (kg)
2.6500000 INR
Get a Price/Quote
Request To Call Back Send Inquiry
X

Sticker Labeling Machine for Wrap Around Price And Quantity

  • 1 Unit
  • 2.6500000 INR

Sticker Labeling Machine for Wrap Around Product Specifications

  • Human Machine Interface
  • Stainless Steel
  • Electric
  • Silver
  • No
  • 100-200 Kilograms (kg)
  • 1500 x 600 x 1200 Millimeter (mm)
  • 1 Year
  • 380 Volt (v)
  • Automatic

Sticker Labeling Machine for Wrap Around Trade Information

  • Nhava Sheva
  • Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID), Cash Advance (CA)
  • 4 Unit Per Month
  • 4 Week
  • Wooden Box.
  • Western Europe, Australia, North America, Eastern Europe, Central America, Africa, Middle East, South America, Asia
  • All India

Product Description

Sticker Labeling Machine for Wrap Around/Flag Label/Top Label/ Single Side/Double Side

Sticker Labeling Machine for Wrap Around/Flag Label/Top Label/ Single Side/Double Side is uses for the labeling of filled & sealed Bottles/Jars/Cans. This rotary labeling machine is compact model uses very less space due to its rotary structure. Automatic Sticker Labeling Machine labels 1ml to 20ml  with maximum speed of 120 Containers per minute. Machine complies as per current good manufacturing standards.

Salient Features:-


Production Speed up to 120 containers per minute.


S.S. 304 Constructions.


Accurate label placement.


Micro processor Control unit with LCD Display.


Full Pharmaceutical security package system.


Secondary Pressing unit.


Any kind of printing device can be accommodated with machine.


Imported Gear Motor for Conveyor & Pressing unit.


Imported Gear Box for Conveyor & Pressing unit.


Programmable MMI Unit.


A.C. Frequency Drive for main drive.


In built Speed Indicator & Counter.


Stepper Motor with Controller.


Imported Sensor for Label & Container.

Process Operation:-

The containers received from feed worm to star wheel precisely spaced and reach at the label wrap around point at the similar distance. While entering at the labeling point, container sensor start with servo motor and pressing belt press the label smoothly between pad and belt. Label sensor photocell detects the space between two labels and hold them until the next container comes. Meantime of this operation pneumatic printing attachment prints.

Technical Specification
Model ASL-120
Production Rate Up to 120 Containers/Minute
Input Specification -
Ampoule Diameter: 10mm to 18mm
Ampoule Height: 50mm to 105mm
Label Size -
Label Length: 20mm to 50mm
Label Width: 15mm to 60mm
Power Specification 0.5 H.P.
Electrical Characteristics 230 Volts, Single Phase 400/750W Servo Motor with encoder
Overall Dimension 1100mm (L) x 1000mm (W) x 1100mm (H)

Other Products in 'Vial Labeling Machine' category

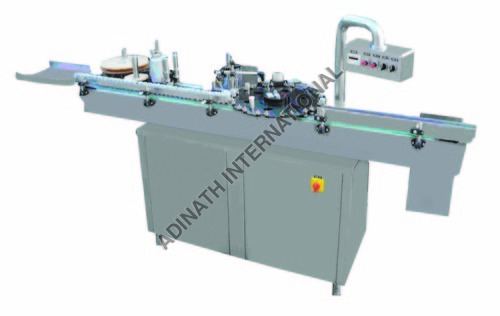

Vial Labeler Machine
Send Inquiry
Sticker Labeler for Round/Sqaure/Oval Bottles/Jars/Cans
Send Inquiry

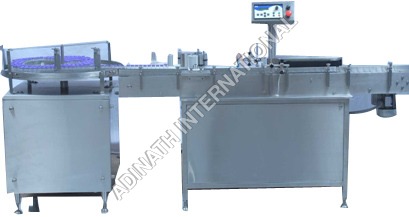

Jar Sticker Labeler Machine
Send Inquiry

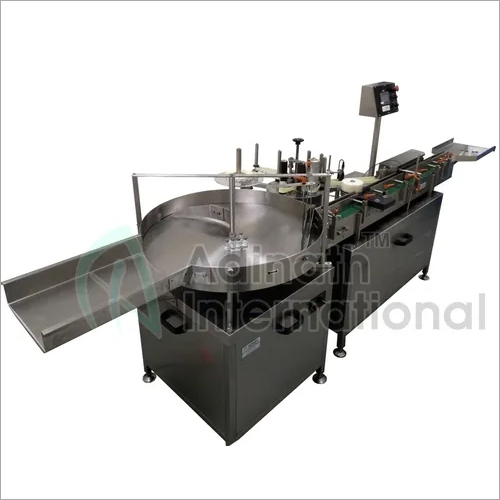

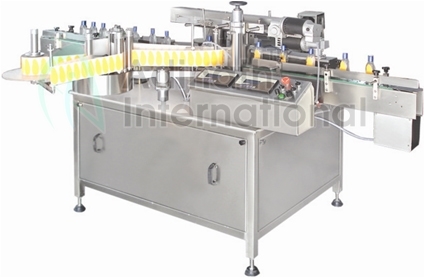

Ampoule Vial Sticker Labeling Machine
