Automatic Rotary Vial Washer

Automatic Rotary Vial Washer

Product Details:

  • Material Stainless Steel
  • Computerized No
  • Voltage 50 Volt (v)
  • Power 220 Volt (v)
  • Weight (kg) 100-200 Kilograms (kg)
  • Dimension (L*W*H) 2550 x 1050 x 1550 Millimeter (mm)
  • Color Sliver
200000 INR
Get a Price/Quote
Request To Call Back Send Inquiry
X

Automatic Rotary Vial Washer Price And Quantity

  • 200000 INR
  • 1 Unit

Automatic Rotary Vial Washer Product Specifications

  • Stainless Steel
  • 100-200 Kilograms (kg)
  • 220 Volt (v)
  • 1 Year
  • Sliver
  • No
  • 50 Volt (v)
  • 2550 x 1050 x 1550 Millimeter (mm)

Automatic Rotary Vial Washer Trade Information

  • Nhava Sheva
  • Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
  • 4 Unit Per Month
  • 4 Week
  • Wooden Box.
  • Western Europe South America Eastern Europe Middle East Central America Africa Australia Asia North America
  • All India

Product Description

 Automatic Rotary Vial Washer

Automatic Rotary Vial Washer is specially designed to wash Vial with minimum contact of machine parts with Vials. Machine with specially designed Gripper system holds the Vial from Neck and invert the Vial till the washing operation completed and again after washing release the Vial on outfeed feedworm system in vertical position ensures positive wash of Vials. Machine is suitable to wash 2ml to 100ml Vials with the help of change parts, Vial feeds through feedworm to infeed Star Wheel and specially designed Gripper hold the Vial from neck and invert the Vial and move it further on rotary moving system for washing process.

Salient Features
Complete cGMP model.
Higher production output capacity of 240 Vials per Minute.
All contact parts with the internal surface of Container and the wash media are made from AISI 316L Stainless Steel.
Non contact parts are made from engineering plastic, AISI SS 304 or other FDA approved material.
All finishes, welding joints are processed, treated & equipment selected in accordance with cGMP standards.
Machine provides 3 water washes & 3 Air washes.
Complete flexibility with user for washing cycle.
18 Jets for 6 internal washing zones.
15 Cassette of Grippers each having 2 Grippers.
Suitable for 2ml to 100ml Vials.
Washing sequence can be made as per customer s requirements.
3 Pumps and 3 Tanks of 25 liters each. (Optional)
Each washing zone with independent circuit to avoid contamination.
Automatic Infeed and Exit of containers.
Machine is equipped with PLC system & printing facility with passwords.
Container unit counter with display in the control panel
Machine can use as a sole machine or inline.
Digital speed indicator for current output

Process Operation


Vials feed from the Infeed tray are received on an Infeed Feedworm then moves on Infeed starwheel. The Grippers picks up the Vial from Infeed Star Wheel and invert it in neck down position over washing needles and move along with the needle bar for Washing. On completion of a cycle, washed Vials are again inverted to neck upward position and feed to output star wheel. Washed Vials received from output starwheel can be collected on Output Tray or can be pushed to tunnel. A separate pumping station (optional) gives the right quantum of water at the desired pressure. In the absent of separate pumping station we can provide the re-circulation & siliconization system on request

Technical Specification
Model: AVRW-240
Production Rate: 100 to 240 Vials/Minute
Input Specification: 2ml to 100ml Vials
Power Specification: 4 H.P., 3 Phase 50 Hertz, 4 wire system
Optional Accessories: Programmable Logic Control (System) with MMI Aluminum Profile Cabinet covering full machine
Utility: Air   20 CFM
  Water   200 to 500 liter per hour depend upon container size
Water Tank & Pump: 3 nos. each with 25 Liters Capacity & Centrifugal pump
Overall Dimension: 2050mm (L) X 2000mm (W) X 1210mm (H)

Other Products in 'Vial Washing Machine' category

Automatic Vial Washer
Send Inquiry
Linear Vial Washer
Send Inquiry

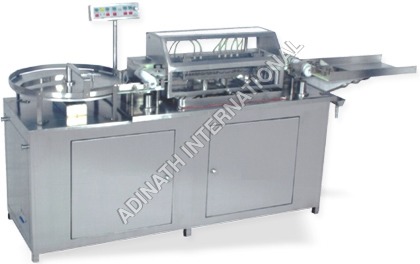

Aseptic Vial Washer
