Send InquiryAutomatic Ampoule Vial Washing Machine
Product Details:
- Type Ampoule Washing Machine
- Material Ampoule
- Computerized No
- Control Mode Automatic
- Color Silver
Automatic Ampoule Vial Washing Machine Price And Quantity
- 1 Unit
- 150000 INR
Automatic Ampoule Vial Washing Machine Product Specifications
- No
- Silver
- Automatic
- Ampoule Washing Machine
- Ampoule
Automatic Ampoule Vial Washing Machine Trade Information
- Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe Asia Australia Eastern Europe Middle East Central America Africa South America North America
- All India
Product Description

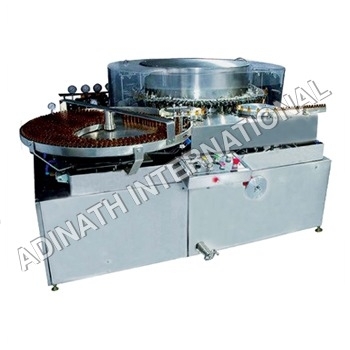

Automatic Ampoule Vial Washing Machine
Automatic Ampoule Vial Washing Machine is specially designed to wash Ampoule with minimum contact of machine parts with Ampoules. Machine with specially designed Gripper system holds the ampoule from Neck and invert the ampoule till the washing operation completed and again after washing release the ampoule on out feed feed worm system in vertical position ensures positive wash of ampoules. Machine is suitable to wash 1ml to 20 ml Ampoules & 2ml to 250ml with the help of change parts, Ampoule feeds through Feed worm to infeed Star Wheel and specially designed Gripper hold the Ampoule from neck and invert the ampoule and move it further on rotary moving system for washing process.
Salient Features :-
Compact GMP Model.
Production output up to 240 Ampoules per Minute.
All contact parts with the internal surface of Ampoules and the wash media are made of AISI SS 316L Stainless Steel.
Other parts are made from engineering plastic, FDA approved or AISI SS 304 Stainless Steel.
All finishes, welding joints are processed, treated & equipment selected in accordance with cGMP standards.
18 Jets for 6 Internal washing zones
15 Cassette of Grippers each having 2 Grippers
Suitable for 1ml to 25ml ampoule & 2ml to 100ml vials.
3 Pumps and 3 Tanks of 25 liters each.
Automatic Infeed and Exit of Ampoules.
Technical Specification:
| Model: | AVRW-120 | AVRW-240 |
| Production Rate: | 70 to 120 Containers/Minute | 90 to 240 Containers/Minute |
| Input Specification: | | |
| Ampoule Diameter Ampoule Height | 9mm to 21.5mm 60mm to 140mm | 9mm to 21.5mm 60mm to 140mm |
| Vial Diameter Vial Height | 14mm to 56mm 32mm to 110mm | 14mm to 56mm 32mm to 110mm |
| Power Specification: | 4 H.P., 3 Phase 50 Hertz, 4 wire system | |
| Optional Accessories: | Programmable Logic Control (System) with MMI Aluminum Profile Cabinet covering full machine | |
| Utility: | Air 20 CFM Water 200 to 500 liter per hour depend upon container size | |
| Water Tank & Pump: | 3 nos. each with 25 Liters Capacity & Centrifugal pump | |
| Overall Dimension: | 2050mm (L) X 2000mm (W) X 1210mm (H) | 2450mm (L) X 2000mm (W) X 1300mm (H) |
