Vial Washing Machine for 2ml/ 5ml/ 10ml/ 20ml/ 30ml/ 50ml/ 100ml & 250ml vials

Product Description

Vial Washing Machine for 2ml/ 5ml/ 10ml/ 20ml/ 30ml/ 50ml/ 100ml & 250ml vials

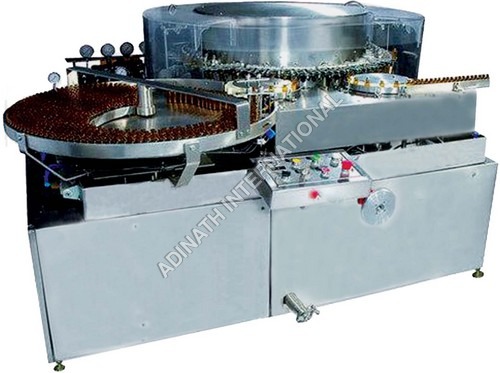

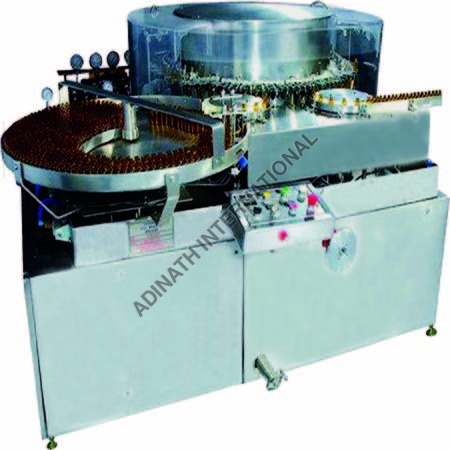

  Vial Washing Machine is specially designed to wash Ampoule & Vial with minimum contact of machine parts with container. Machine with specially designed Gripper system holds the container from Neck and invert till the washing operation completed and again after washing release the container on outfeed feedworm system in vertical position ensures positive wash of containers. Machine is suitable to wash various sizes of containers with the help of change parts. Automatic Rotary Ampoule & Vial Washing Machine is widely uses in Pharmaceutical, Veterinary & Biotech industry for performance & cGMP demanding customers.


Salient Features:-


    All contact parts with the internal surface of Ampoules/Vials and the wash media are made of AISI SS 316L Stainless Steel

    Other parts are made from engineering plastic, FDA approved or AISI SS 304 Stainless Steel

    All finishes, welding joints are processed, treated & equipment selected in accordance with cGMP standards

    18 Jets for 6 Internal washing zones

    15 Cassette of Grippers each having 2 Grippers

    Suitable for 1ml to 25ml ampoule & 2ml to 100ml vials

    Washing sequence can be made as per customer’s requirements

    3 Pumps and 3 Tanks of 25 liters each

    Each washing zone with independent circuit to avoid contamination

    Automatic Infeed and Exit of Ampoules/Vials

    Output capacity of up to 240 Ampoules/Vials per Minute

Process Operation:-


Ampoules/Vials feed from the Infeed tray are received on an Infeed Feedworm then moves on Infeed starwheel. The Grippers picks up the Ampoule/Vial from Infeed Star Wheel and invert it in neck down position over washing needles and move along with the needle bar for Washing. On completion of a cycle, washed ampoules/vials are again inverted to neck upward position and feed to output star wheel. Washed ampoules/vials received from output starwheel can be collected on Output Tray or can be pushed to tunnel

Washing Cycle:-

1st wash    Recycled Water (WFI)

2nd wash    Compressed Air

3rd wash    DM Water

4th wash    Compressed Air

5th wash    Water for Injection (WFI)

6th wash    Compressed Air
