Sterile Ampoule Filler Sealer

Product Description

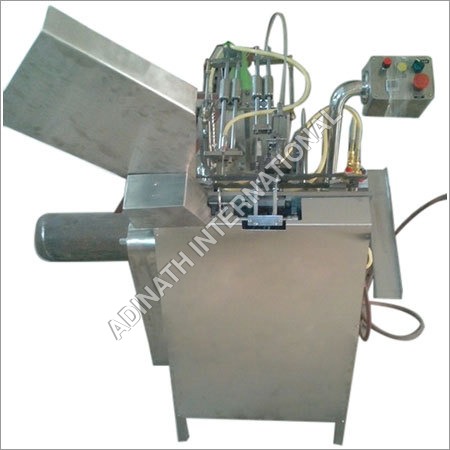

Sterile Ampoule Filler Sealer

Automatic Ampoule Filling Machine is compact & versatile machine for the filling & sealing of glass ampoules. Ampoule Filling Sealing Machine uses in the pharmaceutical industry, apart from this Ampoule Filling Sealing Machine also having application in industries like biotech, cosmetic & chemicals.

We are having different models of Ampoule Filling & Sealing Machine suitable as per need of small, medium & large volume injectable preparations. Our Automatic Six Head Ampoule Filling & Sealing Machine provides output up to 9000 ampoules/hour suitable for large batch production, Our Automatic Four Head Ampoule Filling & Sealing Machine provides output of 7200 ampoules/hour suitable for medium batch production and our Automatic Two Head Ampoule Filling & Sealing Machine provides output of 3300 ampoules/hour suitable for small & medium batch production.

Salient Features

Process Operation

Empty washed & sterilized ampoules receive automatically on wire mesh conveyor belt from outfeed of sterilizing tunnel. Ampoule fed automatically into in-feed hopper from the left hand side of the machine and feed to receiving rack through cassette. The moving rack which moves horizontally collect four ampoules from the receiving rack and transfer the ampoule to the machine in left to right in an inclined position through pre-gassing. Pre-gassing, Filling, Post Gassing, Pre-heating & sealing

Technical Specification

Model:    AFS-55    AFS-100

Production Output    30 to 55 Ampoules/Minute     60 to 100 Ampoules/Minute

No. of Filling & Sealing Heads    Two    Four

Filling Range    1ml to 25ml    1ml to 10ml

Input Specification    -    -

Ampoule Diameter    9mm to 17mm    9mm to 17mm

Ampoule Height    50mm to 95mm    50mm to 95mm

Filling Accuracy     ± 0.5% - 1%    ± 0.5% - 1%

Power Supply    1 H.P.    1 H.P.

Electrical Characteristics    220 Volts, Single Phase, 50 Hertz    220 Volts, Single Phase, 50 Hertz

Utility    -    -

Nitrogen Pressure    1kg/Cm ²    1kg/Cm ²

Oxygen Pressure    1kg/Cm ²     1kg/Cm ²

LPG Pressure    0.5 kg/Cm ²    0.5 kg/Cm ²

Overall Dimension    915mm (L) x 760mm (W) x 965mm (H)    1200mm (L) x 1070mm (W) x 965mm (H)
