Rotary Bottle Washer

Product Description

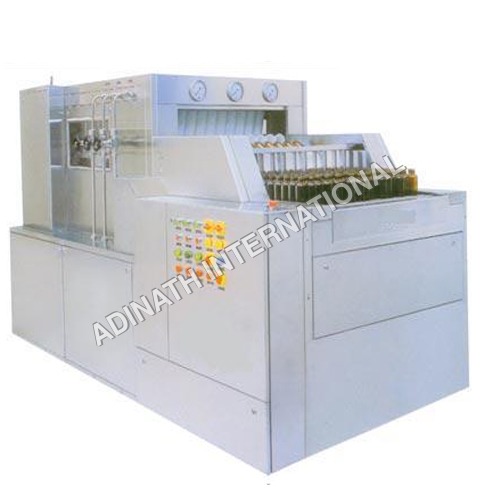

Rotary Bottle Washer

Adinath offer superior quality Rotary Bottle Washer, which are based on Geneva mechanism. This Rotary Bottle Washing Machine is available in sturdy and accurate configuration and offer superior functionality in the pharmaceutical industries. Our bottle washing machines are offered in safe packaging to avoid any damage during the transportation. Apart from the pharmaceuticals, this machine uses in Food, Chemical, Cosmetic & Beverage industry for washing glass bottles.

Salient Features

•     The specially designed cups are provided on the platform to accommodate any size of Bottle from 100 ml to 500 ml.

•     Easy loading and unloading with two rows.

•     Individual solenoid valve for each washing sequence.

•     Pumps and tanks are mounted on parable stand for easy maintenance.

•     Compact GMP model.

•     Geneva mechanism.

•     Four internal, one external and one air wash.

•     Washing Sequences and positioning of washing stations can be interchanged as required for liquid oral & injectable.

•     Stationary nozzles eliminate contamination of water cycles.

Process Operation

The bottles are loaded on rotating platform where bottles are getting cleaned in a series of operations. The bottle holder i.e. nylon cups are specially designed to accommodate bottles with varying neck diameter and bottle diameter. The bottles are placed in an inverted position in cups. The external cleaning of the bottles is done by spraying showers. Solenoid valves are provided to enable the regulation of timings and sequence of various washing media to suit specific requirement.

Technical Specification

Model    ARBW-64    ARBW-100

Production Rate    40 to 60 Bottles/Minute    60 to 100 Bottles/Minute

Direction of movement    Clockwise    Clockwise

Input Specification:    -    -

Round Shape    -    -

Diameter    30mm to 100mm    30mm to 80mm

Height    50mm to 270mm    50mm to 270mm

Square Shape    -    -

Length    30mm to 100mm    30mm to 80mm

Width    10mm to 50mm    10mm to 50mm

Height    58mm to 190mm    58mm to 190mm

Power Specification:    =    -

Main Motor    0.5 H.P.    0.5 H.P.

Pumps    1 H.P. x 2 = 2 H.P.    1 H.P. x 2 = 2 H.P.

Electric Heater    3 K.W.    3 K.W.

Electrical Characteristics:    440 Volts, 3 Phase, 50 Hertz, 4 Wire System    440 Volts, 3 Phase, 50 Hertz, 4 Wire System

Air Pressure Required:    6 bar@5 CFM    6 bar@5 CFM

Tank Capacity:    75 Liters, SS 304 (2 Nos.)    75 Liters, SS 304 (2 Nos.)

Water Cycle:    4 Inner + 1 Outer    4 Inner + 1 Outer

Working Height:    850mm to 900mm    850mm to 900mm

Change Parts:    (A) Neck Diameter: Bottle holding pocket.    (A) Neck Diameter: Bottle holding pocket.

-    (B) Flat Container: Special type of cup.    (B) Flat Container: Special type of cup.

Overall Dimension:    1500mm (L) x 1750mm (W) x 1300mm (H)    1500mm (L) x 1750mm (W) x 1300mm (H)
