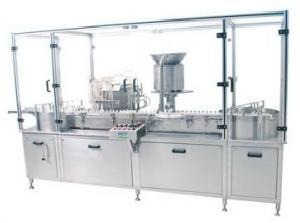

Send InquiryPlastic Vial Filler and Capper
Product Details:
- Material Mild Steel
- Computerized No
- Voltage 440 Volt (v)
- Power 415 Volt (v)
- Weight (kg) 150-200 Kilograms (kg)
- Dimension (L*W*H) 1800 x 1000 x 1600 Millimeter (mm)
- Color Sliver
Plastic Vial Filler and Capper Price And Quantity
- 1 Unit
- 2.3500000 INR
Plastic Vial Filler and Capper Product Specifications
- 1 Year
- 1800 x 1000 x 1600 Millimeter (mm)
- No
- Mild Steel
- Sliver
- 415 Volt (v)
- 150-200 Kilograms (kg)
- 440 Volt (v)
Plastic Vial Filler and Capper Trade Information
- Nhava Sheva
- Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe Australia North America Eastern Europe Africa Middle East South America Asia Central America
- All India
Product Description
Process Operation:-
The incoming dry vial (sterilized and siliconised) are fed through the unscrambler and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit. The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of S.S. 316 construction and both, glass as well as S.S. syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided
Technical Specification:-
| Model | ALVF-60 | ALVF-120 |
| No of Filling Head | Two | Four |
| Production Rate | 30 to 60 Vials/Minute | 60 to 120 Vials/Minute |
| Input Specification: | - | - |
| Container Diameter: | 15mm to 70mm | 15mm to 70mm |
| Container Height: | 25mm to 140mm | 25mm to 140mm |
| Rubber Stopper: | 13mm, 20mm & 28mm Butyl with the help of change part | 13mm, 20mm & 28mm Butyl with the help of change part |
| Filling Range | 2ml to 250ml | 2ml to 250ml |
| Filling Accuracy | ±0.5-1% | ±0.5-1% |
| Power Supply | 1 H.P. | 1 H.P. |
| Electrical Characteristics | 380-440 Volts, 3 Phase, 50 Hertz, 4 Wire System | 380-440 Volts, 3 Phase, 50 Hertz, 4 Wire System |
| Optional Accessories | Programmable Logic Control (System) with MMI | Programmable Logic Control (System) with MMI |
| - | Safety Cabinet covering full machine | Safety Cabinet covering full machine |
| Overall Dimension | 1900mm(L) x 800mm(W) x 1680mm (H) | 2000mm(L) x 850mm (W) x 1680mm (H) |
Note:
- Electrical characteristics can be adjusted as per customers requirements.
- Rights of technical improvement & modification reserved.
- Illustration & dimensions are shown for information purpose only.
