Send InquiryHot-Melts Sigma Mixer
Product Details:
- Weight (kg) 400-1000 Kilograms (kg)
- Computerized No
- Voltage 240 Volt (v)
- Dimension (L*W*H) 1008 x 758 x 615 Millimeter (mm)
- Color Blue
200000 INR
X
Hot-Melts Sigma Mixer Price And Quantity
- 200000 INR
- 1 Unit
Hot-Melts Sigma Mixer Product Specifications
- 240 Volt (v)
- No
- Blue
- 1008 x 758 x 615 Millimeter (mm)
- 400-1000 Kilograms (kg)
Hot-Melts Sigma Mixer Trade Information
- Cash Advance (CA) Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- North America South America Eastern Europe Western Europe Middle East Africa Central America Asia Australia
- All India
Product Description

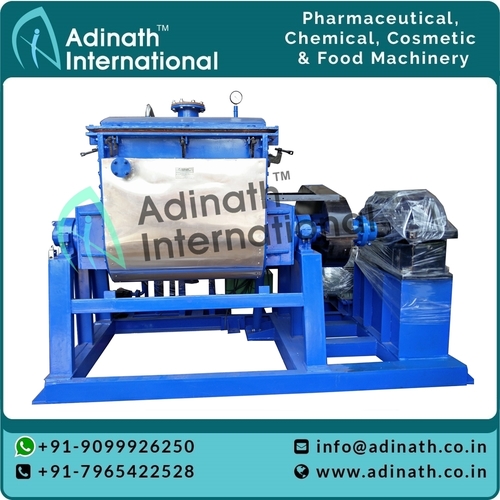

Hot-Melts Sigma Mixer
Â
Sigma Mixer Machine is uses for uniform mixing of semi solid materials. Machine consist of U trough bowl with two ‘Z’ shape blades each rotates in opposite direction for proper mixing of material. Machine equipped with suitable capacity motor & gearbox decided as per characteristics of the product & process. Equipment is provided with Jacket arrangement for heating or cooling applications. We manufacture Sigma Mixer Kneader in capacity ranging from 5 kgs. up to 5000 kgs.
Sigma Mixer Kneader is widely uses for mixing polyester putty, rubber solution, biscuit dough, sauce, polymers etc.
Â
Sigma Mixer Machine is uses for uniform mixing of semi solid materials. Machine consist of U trough bowl with two ‘Z’ shape blades each rotates in opposite direction for proper mixing of material. Machine equipped with suitable capacity motor & gearbox decided as per characteristics of the product & process. Equipment is provided with Jacket arrangement for heating or cooling applications. We manufacture Sigma Mixer Kneader in capacity ranging from 5 kgs. up to 5000 kgs.
Sigma Mixer Kneader is widely uses for mixing polyester putty, rubber solution, biscuit dough, sauce, polymers etc.
Salient Features
- Available in Stainless Steel 316, Stainless Steel 304 and Mild Steel materials.
- Stainless Steel polish to matt & mirror finish as per customer’s requirements.
- Mild Steel finish with one coat of red oxide and two coats of epoxy paint.
- Discharge option of hand wheel operated (manual) or hydraulic operated (automatic) offered.
- Jacket for heating or cooling application can be offered.
- Mineral wool insulation with cladding on jacket.
- Tangential designed ‘Z’ blades offered for uniform mixing.
- PTFE made shaft sealing provided for food grade compatibility.
- Minimum gap between trough inner shell & blades remove possibility of sticking product.
- On demand Spray system, vacuum system
Optional Features/Accessories
- Liquid Spray System
- Vacuum System
- Blades Cooling Arrangement
- Screw System
- Automatic Valve Discharge System
Â
Technical Specification
Â
| Model | Capacity – Litres | Motor (H.P.) | ||
| Working Capacity | Gross Capacity | General | Heavy Duty | |
| ASM – 50 | 50 | 80 | 5 H.P. | 7.5 H.P. |
| ASM – 75 | 75 | 110 | 7.5 H.P. | 10 H.P. |
| ASM – 100 | 100 | 150 | 10 H.P. | 15 H.P. |
| ASM – 150 | 150 | 200 | 15 H.P. | 20 H.P. |
| ASM – 200 | 200 | 300 | 20 H.P. | 25 H.P. |
| ASM – 400 | 400 | 550 | 30 H.P. | 40 H.P. |
| ASM – 500 | 500 | 750 | 40 H.P. | 50 H.P. |
| ASM – 750 | 750 | 1150 | 50 H.P. | 60 H.P. |
| ASM – 1000 | 1000 | 1500 | 60 H.P. | 70 H.P. |
| ASM – 1500 | 1500 | 2100 | 75 H.P. | 80 H.P. |
| ASM – 2000 | 2000 | 2600 | 80 H.P. | 90 H.P. |
| ASM – 3000 | 3000 | 3800 | 100 H.P. | 120 H.P. |
Â
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
Â
