Send InquiryHigh Speed Auger Powder Filling Machine
Product Details:
- Material Mild Steel
- Auxiliary Packaging Machine Type Cleaner
- Computerized No
- Automatic Grade Automatic
- Control System Human Machine Interface
- Drive Type Electric
- Power 220 Volt (v)
High Speed Auger Powder Filling Machine Price And Quantity
- 1 Unit
- 375000 INR
High Speed Auger Powder Filling Machine Product Specifications
- Mild Steel
- No
- Human Machine Interface
- Silver
- Automatic
- Electric
- 1 Year
- 220 Volt (v)
- Cleaner
- 200-500 Kilograms (kg)
- 240-440 Volt (v)
High Speed Auger Powder Filling Machine Trade Information
- Nhava Sheva
- Cash Advance (CA) Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Australia North America South America Eastern Europe Middle East Africa Western Europe Central America Asia
- All India
Product Description

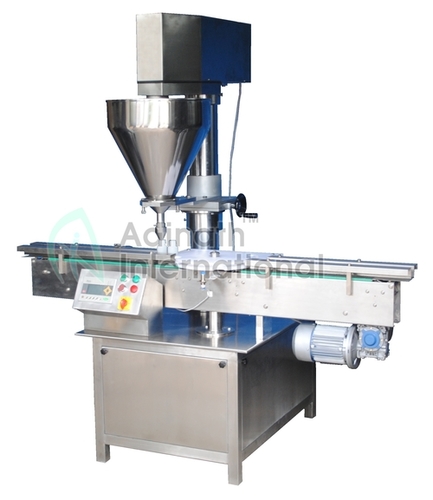

High Speed Auger Powder Filling Machine
High Speed Auger Powder Filling Machine is suitable to fill large volume of powder into bottles, jars & other containers. Machine provides production output of 40 containers per minute and suitable for pharmaceutical, biotech, veterinary and food industry.
It is compact machine, self supported on Stainless Steel legs with height adjustment. The machine is precisely built on sturdy welded Mild Steel frame and duly cladded with Stainless Steel. The powder filling unit is mounted on the pillars is supported by top plate with height adjustments.
Previously cleaned containers are placed to the filling machine platform. From there containers transport towards the filling station with the help of conveyor belt. As soon as the bottle is sensed by bottle sensor, magnetic clutch starts to rotate which is mounted on the auger shaft. It fills the desired volume of powder to the container through Auger. After completion of filling process bottle transfers on conveyor for next capping operations.
Technical Specification:-
| Model | APF-40 | APF-80 |
| Production Rate | 15 to 35 Fills/Minute | 30 to 80 Fills/Minute |
| Input Specification | - | - |
| Container Diameter | 25mm to 100mm | 25mm to 100mm |
| Fill Capacity | 5 gram to 1000 grams | 5 gram to 1000 grams |
| Filling Accuracy | ± 2% depending upon consistency and uniformity of bulk density of Injectable Powder under controlled level of humidity | ± 2% depending upon consistency and uniformity of bulk density of Injectable Powder under controlled level of humidity |
| Power Specification | 2 H.P. | 2 H.P. |
| Electrical Characteristics | 440 Volts, 3 Phase, 50 Hertz | 440 Volts, 3 Phase, 50 Hertz |
| Relational Humidity: | Below 28% | Below 28% |
| Optional Accessories | Pure Air Filter, Vacuum Pump | Pure Air Filter, Vacuum Pump |
| - | Oil Free Air Compressor | Oil Free Air Compressor |
| - | Online Pre-Media Filling Arrangement | Online Pre-Media Filling Arrangement |
| - | Programmable Logic Control (System) with MMI | Programmable Logic Control (System) with MMI |
| - | Aluminum Profile Cabinet covering full machine | Aluminum Profile Cabinet covering full machine |
| Overall Dimension: | 1500mm (L) X 800mm (W) X 1500mm (H) | 1800mm (L) X 800mm (W) X 1500mm (H) |
Note:
1. Electrical characteristics can be adjusted as per customer's requirements
* Rights of technical improvement & modification reserved.
* Illustration & dimensions are shown for information purpose only.
