Send InquiryFour Head Screw Capping Machine
Product Details:
- Material SS 304
- Feature Chemical Medical
- Computerized No
- Automatic Grade Semi-Automatic
- Control System Human Machine Interface
- Drive Type Electric
- Power 220 Volt (v)
Four Head Screw Capping Machine Price And Quantity
- 100000.00 - 300000.00 INR
- 1 Unit
Four Head Screw Capping Machine Product Specifications
- Semi-Automatic
- Human Machine Interface
- 1 Year
- 1000x600x950 Millimeter (mm)
- Silver
- Electric
- 220 Volt (v)
- No
- 380 Volt (v)
- SS 304
- 100-200 Kilograms (kg)
- Chemical Medical
Four Head Screw Capping Machine Trade Information
- Nhava Sheva
- Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe Asia Australia North America Eastern Europe Middle East Central America Africa South America
- All India
Product Description

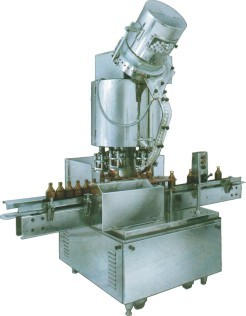

Four Head Screw Capping MachineAutomatic Four Head Screw Capping Machine is suitable for round or other shape of glass, plastic, PET, LDPE, HDPE bottles. Machine constructed in stainless steel finish including M.S. frame structure with stainless steel cladding/enclosures. The capping machine is ideal for application in pharmaceutical, food, pesticides, cosmetic & other Industries.
Machine is equipped with vibratory type bowl feeder depending on cap shape and size for continues feeding of cap for online operation on any liquid of powder filling line. Machine is suitable for various sizes of bottles and ROPP cap with the help of change parts. Capping Machine is suitable for application in Pharmaceutical and other industries requiring higher production speed on automatic online operation.
Salient Features:
Compact GMP model.
No Bottle No Cap system.
No Cap in Chute Machine Stop system.
Container Overturn Machine Stop mechanism.
Inbuilt pulse counter.
Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.
Parts coming in contact with the Container or the Aluminum cap or exposed to atmosphere are made out of stainless steel for long life.
Single motor synchronizes Conveyor, star wheel and Platform Turret and speed can be varied by VFD.
Star Wheel is equipped with safety clutch for automatic stoppage of machine in case of jamming or overloading.
Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.
Digital counter for counting production output.
Technical Specification :
| Model | ACSS-120 |
| No. of Capping Heads | Four |
| Production Rate | 60 to 120 Containers/Minute |
| Input Specification
Container Diameter: Container Height: Cap Diameter: |
24mm to 90mm 50mm to 250mm 20mm, 25mm & 28mm with the help of change parts |
| Power Specification: | 1 H.P. |
| Electrical characteristics | 440 Volts, 3 Phase, 50 Hertz, 4 Wire System |
| Conveyor Height | 800mm to 900mm adjustable |
| Optional Accessories | Aluminum profile cabinet covering full machine PLC with GUI |
| Overall Dimension | 1500mm (L) X 850mm (W) X 1800mm (H) |
Note: Electrical characteristics can be adjusted as per customer's requirements.
* Rights of technical improvement & modification reserved.
* Illustration & dimensions are shown for information purpose only.
