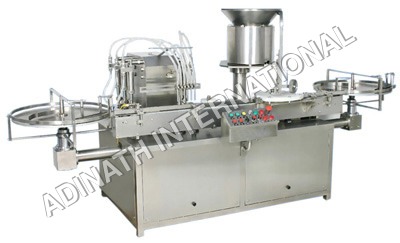

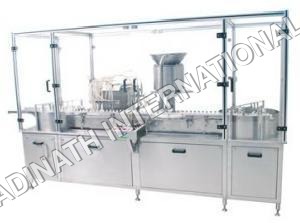

Eye Drop Filler Capper

Product Description

With hard work and sincerity of our professionals, we have carved a niche for ourselves by offering Eye Drop Filler Capper. It is manufactured for filling eye drop solution in plastic vials. The product provided by us is designed under the vigilance of our dexterous professionals in strict adherence with set industry standards making use of quality assured components and sophisticated technology. Highly admired by the clients for its hassle free performance and long functional life, this Eye Drop Filler Capper is made available in enormous technical specifications for our clients to choose from.

Features:

Salient Features:

Process Operation:

The incoming dry vial (sterilized & siliconised) are fed through the unscrambler and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit.

The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of Stainless Steel 316L construction and both, glass as well as Stainless Steel syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ''No Vial-No Filling'' operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be either increased or decreased by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation. Liquid will reach to filling nozzles through silicon transparent pipe. Nozzle will be having Up and Down movement with help of cam mechanism and it will come down when vial will be hold by starwheel for filling operation and starts filling when it starts to move up and after completion of filling operation, starwheel delivers six vials together on conveyor for capping operation.

Capping unit consist of Star wheel, Vibrator unit and Bowl. The sterilized and siliconised caps stored in the vibrator bowl moves vertically to the cap chute. The vial is hold firmly by starwheel, which will be in continuous rotary motion and vial which is coming from filling unit get in to star wheel and move in rotary direction along with star wheel, during movement it will pick up the cap from the exit end of the chute and cap will be pressed by fix single pressing roller, which is spring loaded. Then vial further move on conveyor and collected on out feed star wheel for next labeling operation.
