Send InquiryButyl rubber Sigma Mixer
Product Details:
- Material Stainless Steel
- Capacity 5000 Kg/hr
- Weight (kg) 500-900 Kilograms (kg)
- Computerized No
- Automatic Yes
- Voltage 110 Volt (v)
- Dimension (L*W*H) 900 x 870 x 1950 Millimeter (mm)
Butyl rubber Sigma Mixer Price And Quantity
- 1 Unit
- 200000.00 - 450000.00 INR
Butyl rubber Sigma Mixer Product Specifications
- Yes
- 500-900 Kilograms (kg)
- Blue
- No
- 5000 Kg/hr
- 110 Volt (v)
- Stainless Steel
- 900 x 870 x 1950 Millimeter (mm)
Butyl rubber Sigma Mixer Trade Information
- Nhava Sheva
- Cash Advance (CA) Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe North America Eastern Europe Middle East Africa Central America South America Australia Asia
- All India
Product Description

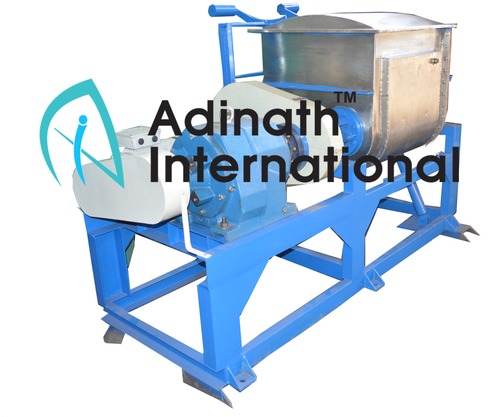

Butyl Rubber Sigma Mixer
Sigma Mixer Machine is uses for uniform mixing of semi solid materials. Machine consist of U trough bowl with two shape blades each rotates in opposite direction for proper mixing of material. Machine equipped with suitable capacity motor & gearbox decided as per characteristics of the product & process. Equipment is provided with Jacket arrangement for heating or cooling applications. We manufacture Sigma Mixer Kneader in capacity ranging from 5 kgs. up to 5000 kgs.
Sigma Mixer Kneader is widely uses for mixing polyester putty, rubber solution, biscuit dough, sauce, polymers etc
Salient Features
Available in Stainless Steel 316, Stainless Steel 304 and Mild Steel materials.
Stainless Steel polish to matt & mirror finish as per customers requirements.
Mild Steel finish with one coat of red oxide and two coats of epoxy paint.
Discharge option of hand wheel operated (manual) or hydraulic operated (automatic) offered.
Jacket for heating or cooling application can be offered.
Mineral wool insulation with cladding on jacket.
Tangential designed blades offered for uniform mixing.
PTFE made shaft sealing provided for food grade compatibility.
Minimum gap between trough inner shell & blades remove possibility of sticking product.
On demand Spray system, vacuum system
Optional Features/Accessories
Liquid Spray System
Vacuum System
Blades Cooling Arrangement
Screw System
Automatic Valve Discharge System
Technical Specification
Model | Capacity Litres | Motor (H.P.) | ||
Working Capacity | Gross Capacity | General | Heavy Duty | |
ASM 50 | 50 | 80 | 5 H.P. | 7.5 H.P. |
ASM 75 | 75 | 110 | 7.5 H.P. | 10 H.P. |
ASM 100 | 100 | 150 | 10 H.P. | 15 H.P. |
ASM 150 | 150 | 200 | 15 H.P. | 20 H.P. |
ASM 200 | 200 | 300 | 20 H.P. | 25 H.P. |
ASM 400 | 400 | 550 | 30 H.P. | 40 H.P. |
ASM 500 | 500 | 750 | 40 H.P. | 50 H.P. |
ASM 750 | 750 | 1150 | 50 H.P. | 60 H.P. |
ASM 1000 | 1000 | 1500 | 60 H.P. | 70 H.P. |
ASM 1500 | 1500 | 2100 | 75 H.P. | 80 H.P. |
ASM 2000 | 2000 | 2600 | 80 H.P. | 90 H.P. |
ASM 3000 | 3000 | 3800 | 100 H.P. | 120 H.P. |
* Power voltage can be adjusted as per customer domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
Below are the features we can incorporate in Sigma Mixer Machine:
