Send InquiryAutomatic Powder Filling Bunging Machine
Product Details:
- Material Stainless Steel
- Feature Food Medical Chemical
- Computerized No
- Automatic Grade Semi-Automatic
- Drive Type Electric
- Power 220 Watt (w)
- Voltage 240 Volt (v)
Automatic Powder Filling Bunging Machine Price And Quantity
- 100000.00 - 300000.00 INR
- 1 Unit
Automatic Powder Filling Bunging Machine Product Specifications
- No
- 100-200 Kilograms (kg)
- Stainless Steel
- 240 Volt (v)
- Silver
- Food Medical Chemical
- 1000x600x950 Millimeter (mm)
- Electric
- 1 Year
- Semi-Automatic
- 220 Watt (w)
Automatic Powder Filling Bunging Machine Trade Information
- Nhava Sheva
- Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe North America Eastern Europe Central America Africa Middle East South America Australia Asia
- All India
Product Description

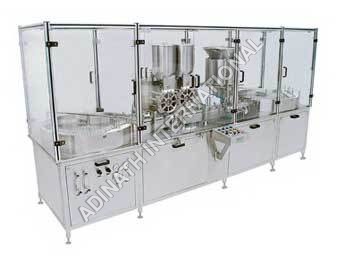

Automatic Powder Filling Bunging Machine
Automatic Powder Filling Bunging Machine is suitable to fill injectable powder into vials/bottles. The precision built welded steel frame is encompassed with stainless steel sheets with access doors for servicing the machine. All parts coming in contact with container, powder and rubber stopper or exposed to the atmosphere are made of stainless steel for long life, good house keeping and current good manufacturing practice (cGMP).
Salient Features
-
Compact GMP model.
-
No Vial No Filling system.
-
Multiple Dosing System.
-
1% filling accuracy.
-
Built-in Rubber Stoppering Unit saves lot of space in the Sterile Area & reduces the length of Laminar Flow.
-
No stopper in chute, Machine stop system.
-
All motors are provided with appropriate contractors and relays for the protection against any overload or jamming.
-
Safety clutch system to avoid Bottle breakage.
-
Variable A.C. Frequency Drive for speed control.
-
All parts and assemblies coming in contact with powder and rubber stopper are made of S.S.316 and easily removable for mandatory Autoclaving/ Sterilization.
-
S.S. square pipe frame structure to avoid vibration.
-
All driving is through High quality imported Gear motor for better machine performance without vibration or leakage of oil of area floor from gear box.
-
Imported Gear Motor for Main drive, in feed and out feed table.
Technical Specification
| Model | APF-60 | APF-100 |
| Production Rate | 20 to 60 Fills/Minute | 50 to 100 Fills/Minute |
| Input Specification Container Diameter Rubber Stopper |
25mm to 80mm 20mm, 28mm & 30mm Butyl | |
| Fill Capacity | 5 gram to 50 grams in single dose with the help of change parts. | |
| Filling Accuracy | 1% depending upon consistency and uniformity of bulk density of Injectable Powder under controlled level of humidity (Below 28% Rh) | |
| Power Specification | 2 H.P. | |
| Electrical Characteristics | 440 Volts, 3 Phase, 50 Hertz | |
| Utility Compressed Air: Vacuum: Relational Humidity: |
Max. 2 Kg./Cm Oil Free 25 Hg. @ 300 LPM Displacement Below 28% | |
| Optional Accessories | Pure Air Filter, Vacuum Pump Oil Free Air Compressor Online Pre-Media Filling Arrangement Programmable Logic Control (System) with MMI Aluminum Profile Cabinet covering full machine | |
| Overall Dimension: | 2400mm (L) X 900mm (W) X 1800mm (H) | 2600mm (L) X 900mm (W) X 1800mm (H) |
|
| (Dimension include main machine with 900mm in-feed turn table) | |
Note: Electrical characteristics can be adjusted as per customers requirements.
