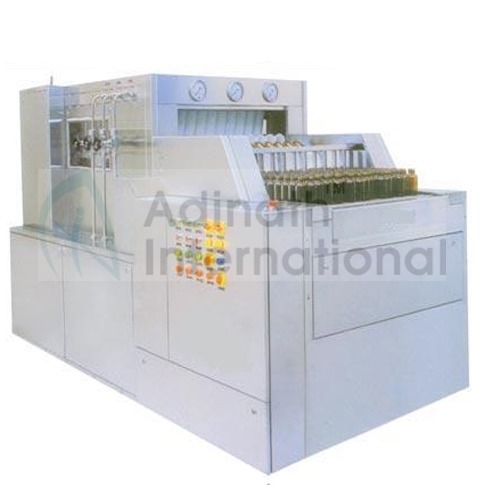

Send InquiryAutomatic Linear Bottle Washing Machine
Product Details:
- Material Glass and Mild Steel
- Computerized No
- Voltage 380 Volt (v)
- Power 220 Volt (v)
- Weight (kg) 100-200 Kilograms (kg)
- Dimension (L*W*H) 1650x1650x2150 Millimeter (mm)
- Color Sliver
Automatic Linear Bottle Washing Machine Price And Quantity
- 3.2500000 INR
- 1 Unit
Automatic Linear Bottle Washing Machine Product Specifications
- Glass and Mild Steel
- 1 Year
- 220 Volt (v)
- Sliver
- No
- 380 Volt (v)
- 100-200 Kilograms (kg)
- 1650x1650x2150 Millimeter (mm)
Automatic Linear Bottle Washing Machine Trade Information
- Nhava Sheva
- Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe North America Eastern Europe Middle East Central America Africa South America Australia Asia
- All India
Product Description
Automatic Linear Bottle Washing Machine is suitable to wash bottles with the minimum use of labor & time. Machine provides three water washes & two air washes for the perfect washing of bottles. Machine is widely uses into pharmaceutical industry and most proffered choice for Dry syrup filling line operations.
Salient Features:
-
A complete cGMP model.
-
All contact parts are made from high quality Stainless Steel 316L and argon arc welded.
-
All exposed parts are made from Stainless Steel 304/hard chrome plated/brass for corrosion free long life.
-
The unit built on S.S. Square pipe frame and totally encompassed with S.S. Coverings
-
Washing section is totally covered with acrylic cabinet.
-
No Container No Washing system.
-
No washing No water supply system.
-
Low water consumption.
-
Quick change over with minimum use of tools.
-
Variable AC frequency drive for speed adjustment.
-
Digital counter for counting production output.
-
Fixed top nozzles at each washing station ensures external washing of vials/bottles at the same time of internal washing.
-
Flow of washing Medias stop during the indexing of chain saves utilities.
-
Easily cleanable & Inter changing facility.
Process Operation:
Containers feed from the de-cartooning station are received on an In feed turn table. An in feed worm inverts container to neck down position and feeds them through a specially designed indexing device. The device carries the container forward and stops.
Nozzles carrier enters into the container and activities the jet of water/air. The air/water flow is deactivated after the washing cycle is over. Device indexes the vials/bottles for next wash. A separate pumping station gives the right quantum of water at the desired pressure.
Washed containers are again inverted to neck upward position to collect in out-feed tray/directly feed to tunnel.
Technical Specification:
| Model | ALBW-50 | ALBW-100 | |
| Production Rate | 30 to 50 Containers/Minute | 50 to 100 Containers/Minute | |
| Input Specification (Container Diameter) | : 25mm to 70mm | 25mm to 70mm | |
| Power Specification Main Machine: Pumping Station: Loading Platform: |
0.75 H.P. 2.25 H.P. 0.25 H.P. |
1.50 H.P. 2.25 H.P. 0.25 H.P. | |
| Electrical Characteristics | 440 Volts, 3 Phase, 50 Hertz, 4 Wire System | ||
| Optional Accessories | Pumping Station | Pumping Station | |
| Inspection Station | Inspection Station | ||
| Loading Platform | Loading Platform | ||
| Programmable Logic Control with GUI | Programmable Logic Control with GUI | ||
| Input Utilities |
| ||
| Fresh Water: | 5 Liters / Minute | 10 Liters / Minute | |
| DM water: | 10 Liters / Minute | 20 Liters / Minute | |
| WFI water: | 5 Liters / Minute | 10 Liters / Minute | |
| Air: | 30 CFM @ 5 Bar | 30 CFM @ 5 Bar | |
| Change Parts | Infeed Worm, Infeed Star wheel Infeed Inverter, Exit Feed Worm Exit Star wheel, Exit Inverter | Infeed Worm, Infeed Star wheel Infeed Inverter, Exit Feed Worm Exit Star wheel, Exit Inverter | |
| Overall Dimension | 2300mm x 850mm x 915mm | 2300mm x 1000mm x 915mm | |

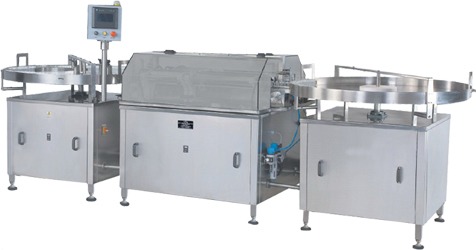

Other Products in 'Bottle Washing Machine' category
