Automatic Bottle Ropp Capping Machine

Product Description

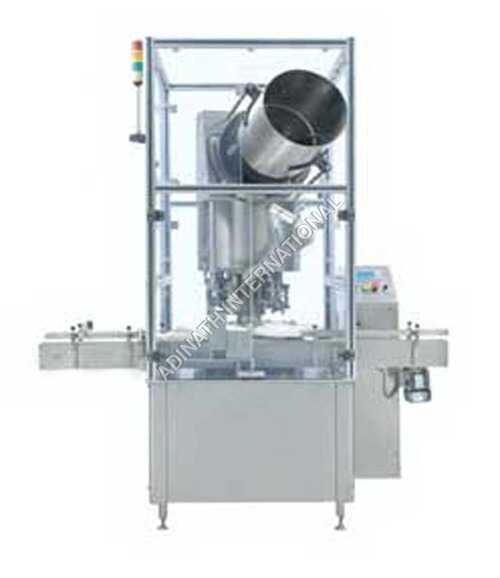

 Automatic Bottle Ropp Capping Machine

Automatic Bottle ROPP Capping Machine is suitable for round or other shape of glass, plastic, PET, LDPE, HDPE bottles. Machine construction in stainless steel finish including M.S. frame structure with stainless steel cladding/enclosures. The capping machine is ideal for application in pharmaceutical, food, pesticides, cosmetic & other Industries.

Machine is equipped with vibratory type bowl feeder depending on cap shape and size for continues feeding of cap for online operation on any liquid of powder filling line. Machine suitable for various sizes of bottles and ROPP cap with the help of change parts. Capping Machine is suitable for application in Pharmaceutical and other industries requiring higher production speed on automatic online operation.

Salient Features:-

Compact GMP model.

“No Bottle - No Cap system.

“No Cap in Chute - Machine Stop system.

“Container Overturn - Machine Stop mechanism.

Inbuilt pulse counter.

Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.

Parts coming in contact with the Container or the Aluminum cap or exposed to atmosphere are made out of stainless steel for long life.

Single motor synchronizes Conveyor, star wheel and Platform Turret and speed can be varied by VFD.

Star Wheel is equipped with safety clutch for automatic stoppage of machine in case of jamming or overloading.

Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.

Digital counter for counting production output.

Process Operation:-

The filled bottles moving on conveyor belt and fed into an in feed star wheel by in-feed worm.

While moving in feed star wheel, bottles pick up caps one by one from delivery chute. The descending rotary sealing heads hold bottle’s neck with desired pressure.

The sealing is done in a programmed roll-on manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps.

The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed bottles are discharged by exist star wheel on conveyors.

Technical Specification:-

Note: Electrical characteristics can be adjusted as per customers requirements.

          * Rights of technical improvement & modification reserved.

          * Illustration & dimensions are shown for information purpose only.
