Automatic Bottle Filling Machine For 100ML/200ML/300ML/400ML & More Bottles

Product Description

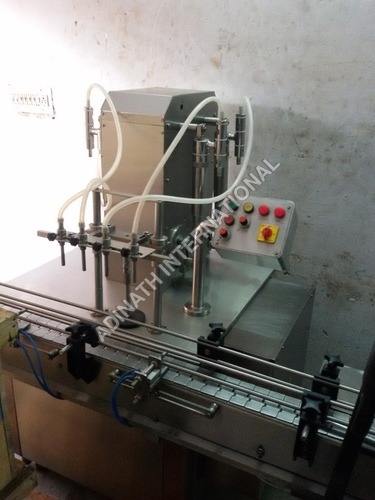

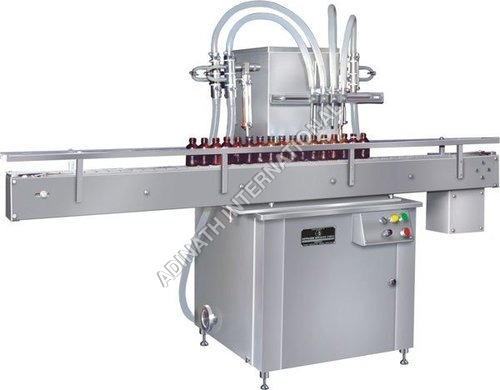

Automatic Bottle Filling Machine

Bottle Filling machine is a most widely used machine in the pharmaceutical industry. The machine also finds application in Food, Chemical & allied industry. The monoblock design saves space since filling and Screw/ROPP capping modules are built on the same base and the common drive for filling & sealing modules. The filling principle is volumetric, positive displacement of product with piston & cylinder arrangements. Another highlight of this Rotary filler is all the pistons can be set for different volumes by setting the twin cams tracks. Finer volume adjustment of individual cylinders is also built on the cams track rollers.

The concept of Monoblock filling and sealing also ensures very high QMP standards, as the bottles are sealed immediately after filling. The rotary sealing module matched with filling and gives accurate sealing. The automatic cap feeder built on separate column prevent dust/cap particles falling into filled bottles. The Monoblock machine has built in feature for on line automation like sensors for bottles fall at infeed machine stops, extra bottle accumulation at out feed and for cap accumulation the feeder stop.

Salient Features:-

•   Compact GMP model.
•   No Bottle - No Filling system.
•   Single Operator for two operations.
•   All contact parts made of AISI SS 316 material with easy removal system for easy cleaning.
•   Machine construction in AISI SS 304 material.
•   Infeed turn table for automatic feeding of bottles.
•   Diving Nozzle for Foam free filling.
•   Very High Fill Accuracy.
•   Automatic In-feed and Exit of Bottles.
•   Minimum Change Over time.
•   Variable AC frequency drive for speed adjustment.
•   Digital bottle counter for counting production output.

Note: Electrical characteristics can be adjusted as per customers domestic electrical requirements.

      * Rights of technical improvement & modification reserved.

     * Illustration & dimensions are shown for information purpose only
