Send InquiryAutomatic Ampoule Washing Machine
Product Details:
- Material Ampoule
- Computerized No
- Control Mode Automatic
- Color Silver
Automatic Ampoule Washing Machine Price And Quantity
- 200000 INR
- 1 Unit
Automatic Ampoule Washing Machine Product Specifications
- Automatic
- Silver
- Ampoule
- No
Automatic Ampoule Washing Machine Trade Information
- Letter of Credit (L/C) Cash Advance (CA) Telegraphic Transfer (T/T) Cash in Advance (CID)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe Eastern Europe Africa Middle East South America Australia Asia Central America North America
- All India
Product Description

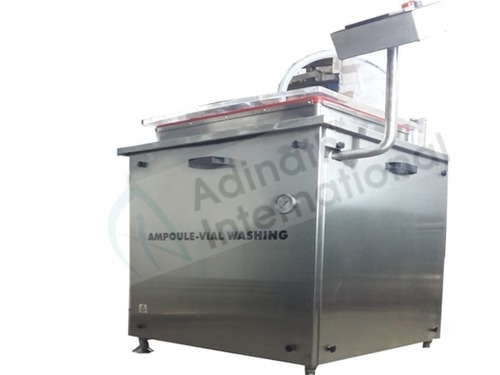

Automatic Ampoule Washing Machine
Automatic Ampoule Washing Machine is specially designed to wash Ampoule with minimum contact of machine parts with Ampoules. Machine with specially designed Gripper system holds the Ampoule from Neck and invert the Ampoule till the washing operation completed and again after washing release the Ampoule on out feed feed worm system in vertical position ensures positive wash of Ampoules. Machine is suitable to wash 1ml to 10 ml Ampoules with the help of change parts, Ampoule feeds through feedworm to infeed Star Wheel and specially designed Gripper hold the Ampoule from neck and invert the Ampoule and move it further on rotary moving system for washing process.
Salient Features
-
Complete cGMP model.
-
Higher production output capacity of 120 Ampoules per Minute.
-
All contact parts with the internal surface of Container and the wash media are made from AISI 316L Stainless Steel.
-
Non contact parts are made from engineering plastic, AISI SS 304 or other FDA approved material.
-
All finishes, welding joints are processed, treated & equipment selected in accordance with cGMP standards.
-
Machine provides 3 water washes & 3 Air washes.
-
Complete flexibility with user for washing cycle.
-
18 Jets for 6 internal washing zones.
-
15 Cassette of Grippers each having 2 Grippers.
-
Suitable for 1ml to 10ml Ampoules.
-
Washing sequence can be made as per customer s requirements.
-
3 Pumps and 3 Tanks of 25 liters each. (Optional)
-
Each washing zone with independent circuit to avoid contamination.
-
Automatic Infeed and Exit of containers.
-
Machine is equipped with PLC system & printing facility with passwords.
-
Container unit counter with display in the control panel
-
Machine can use as a sole machine or inline.
-
Digital speed indicator for current output
Process Operation
Ampoules feed from the Infeed tray are received on an Infeed Feedworm then moves on Infeed starwheel. The Grippers picks up the Ampoule from Infeed Star Wheel and invert it in neck down position over washing needles and move along with the needle bar for Washing. On completion of a cycle, washed Ampoules are again inverted to neck upward position and feed to output star wheel. Washed Ampoules received from output star wheel can be collected on Output Tray or can be pushed to tunnel. A separate pumping station (optional) gives the right quantum of water at the desired pressure. In the absent of separate pumping station we can provide the re-circulation & siliconization system on request
Technical Specification
Model: AVRW-120
Production Rate: 60 to 120 Ampoules/Minute
Input Specification: 1ml to 10ml ampoules
Power Specification: 3 H.P., 3 Phase 50 Hertz, 4 wire system
Optional Accessories: Programmable Logic Control (System) with MMI Aluminum Profile Cabinet covering full machine
Utility: Air 20 CFM Water 200 to 500 liter per hour depend upon container size
Water Tank & Pump: 3 nos. each with 25 Liters Capacity & Centrifugal pump
Overall Dimension: 2050mm (L) X 1900mm (W) X 1210mm (H)
