Send Inquiry2ml Ampoule Filling Machine
Product Details:
- Material Stainless Steel
- Feature Chemical Food Medical
- Computerized No
- Automatic Grade Semi-Automatic
- Power 220 Volt (v)
- Voltage 380 Volt (v)
- Weight (kg) 100-200 Kilograms (kg)
2ml Ampoule Filling Machine Price And Quantity
- 100000.00 - 300000.00 INR
- 1 Unit
2ml Ampoule Filling Machine Product Specifications
- 1 Year
- 220 Volt (v)
- Chemical Food Medical
- No
- Semi-Automatic
- 100-200 Kilograms (kg)
- 900x870x1950 Millimeter (mm)
- Silver
- Stainless Steel
- 380 Volt (v)
2ml Ampoule Filling Machine Trade Information
- Letter of Credit (L/C) Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
- 4 Unit Per Month
- 4 Week
- Wooden Box.
- Western Europe Australia North America Eastern Europe Central America Africa Middle East South America Asia
- All India
Product Description

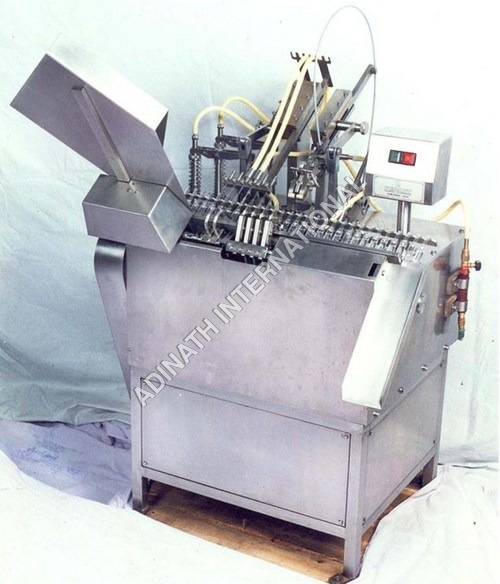

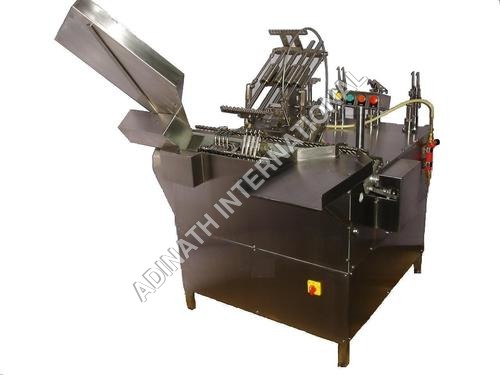

2ml Ampoule Filling MachineAutomatic Ampoule Filling Sealing Machine is suitable to fill 1ml to 20ml ampoules. Machine designed for performance and GMP demanding customers. The machine built on principal of slant travel of ampoules while filling and sealing to take care of vide variation of neck dimensions, thickness and ovality of available ampoules. The unit built on S.S. Square pipe frame and totally encompassed with S.S. Coverings in pleasing mat finish. Further large opening available at bottom side for ease of absolute cleaning.
Salient Features :
Compact GMP model.
All contact parts made from high quality Stainless Steel 316L & other Non-contact parts made from Stainless Steel 304.
Minimum change over parts from 1ml to 10ml ampoule size.
No Ampoule No Filling system.
Ampoule neck centering during gas flushing and filling operations.
Possibility of nitrogen gas flushing before, during and after filling.
Full accessibility allows easy maintenance.
Machine equipped with pre-warming station.
Minimum change over time, little maintenance & easy cleaning.
Technical Specification :
| Model: | AFS-55 | AFS-100 |
| Production Output | 30 to 55 Ampoules/Minute | 60 to 100 Ampoules/Minute |
| No. of Filling & Sealing Heads | Two | Four |
| Filling Range | 1ml to 20ml | 1ml to 10ml |
| Input Specification | - | - |
| Ampoule Diameter | 9mm to 17mm | 9mm to 17mm |
| Ampoule Height | 50mm to 95mm | 50mm to 95mm |
| Filling Accuracy | ± 0.5% - 1% | ± 0.5% - 1% |
| Power Supply | 1 H.P. | 1 H.P. |
| Electrical Characteristics | 220 Volts, Single Phase, 50 Hertz | 220 Volts, Single Phase, 50 Hertz |
| Utility | - | - |
| Nitrogen Pressure | 1kg/Cm² | 1kg/Cm² |
| Oxygen Pressure | 1kg/Cm² | 1kg/Cm² |
| LPG Pressure | 0.5 kg/Cm² | 0.5 kg/Cm² |
| Overall Dimension | 915mm (L) x 760mm (W) x 965mm (H) | 1200mm (L) x 1070mm (W) x 965mm (H) |
